Moectf2025ReverseWriteUp
Moectf2025 Reverse方向全解&详解
week1
upx

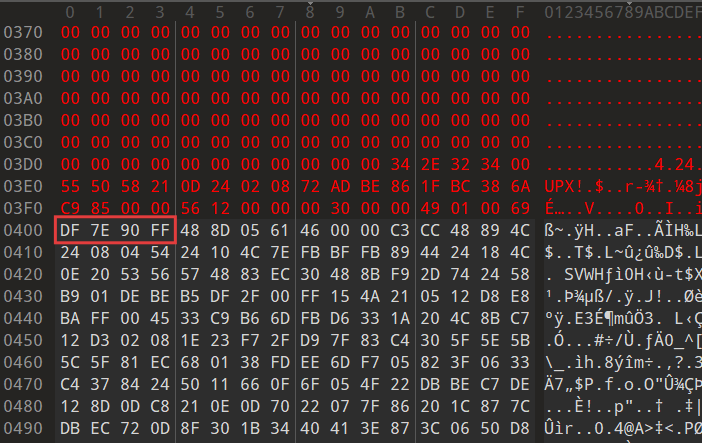

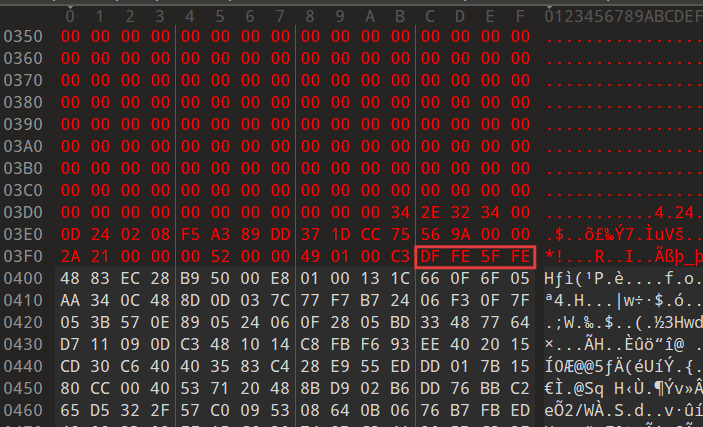

附件程序用010editor打开，可以看到upx版本，可以找对应版本upx程序脱壳，也可以手动脱壳（采用内存镜像法）：

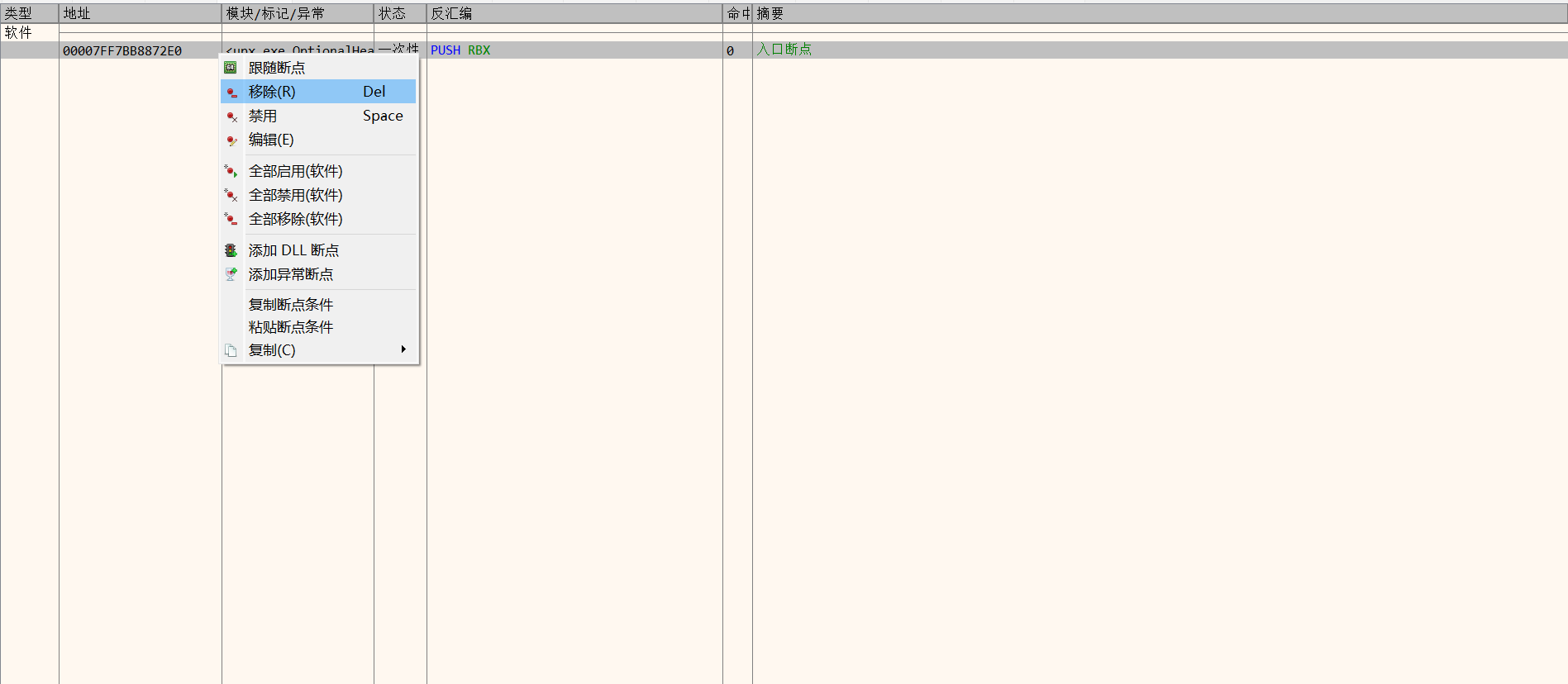

用x64dbg打开程序，先移除预设断点

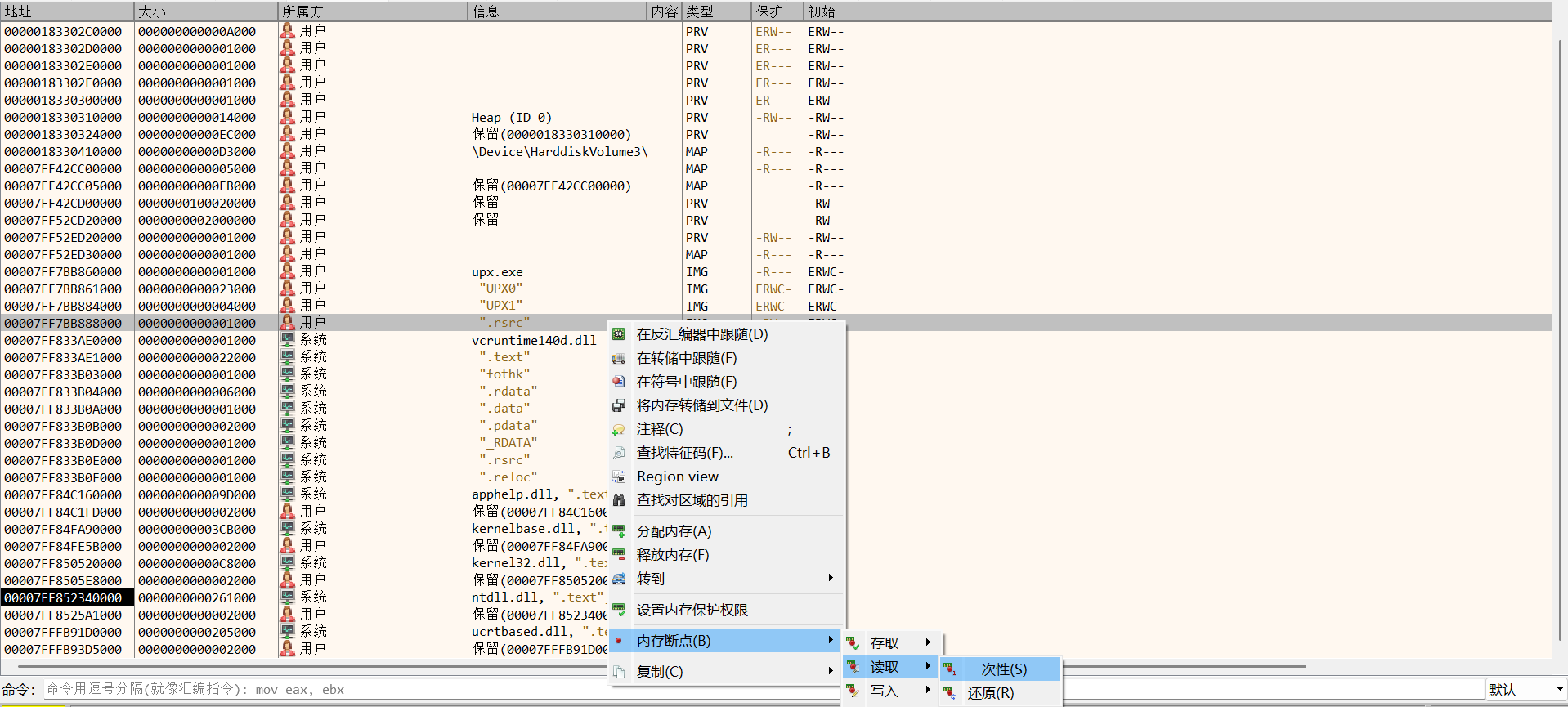

在“内存映射”窗口给程序的.rsrc段下一次性内存访问断点，F9运行

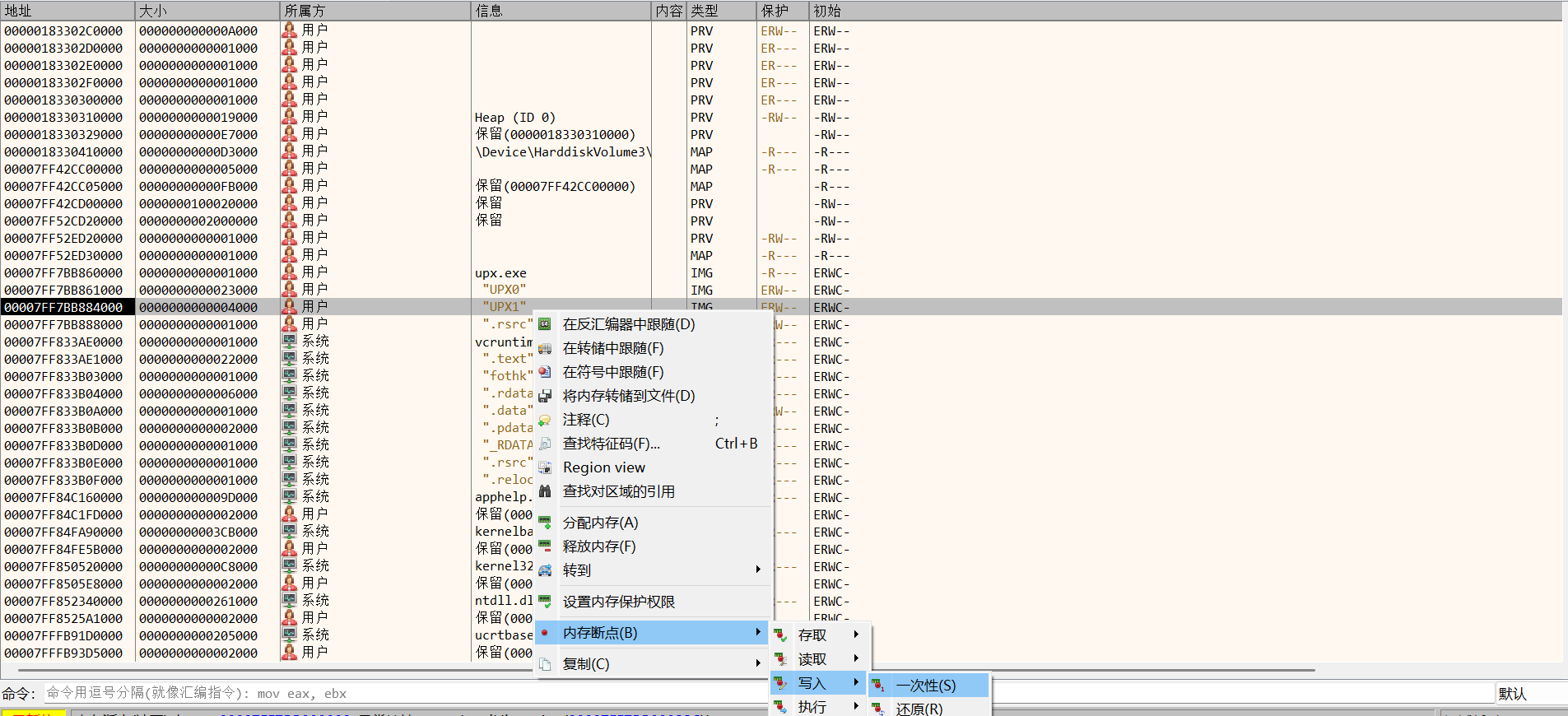

然后在UPX0段或者UPX1段下一次性内存写入断点，F9运行

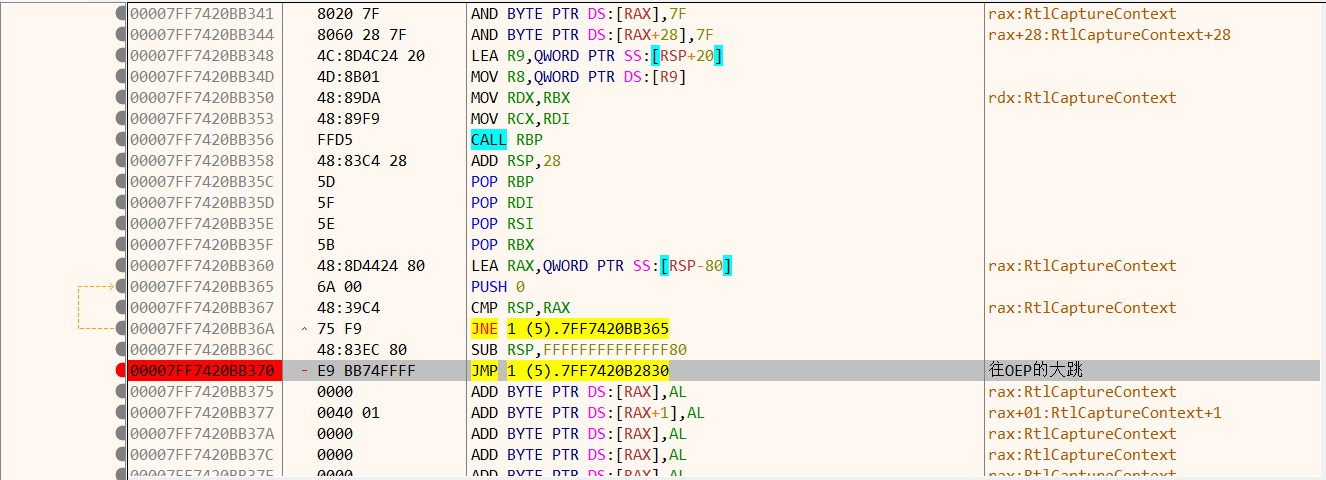

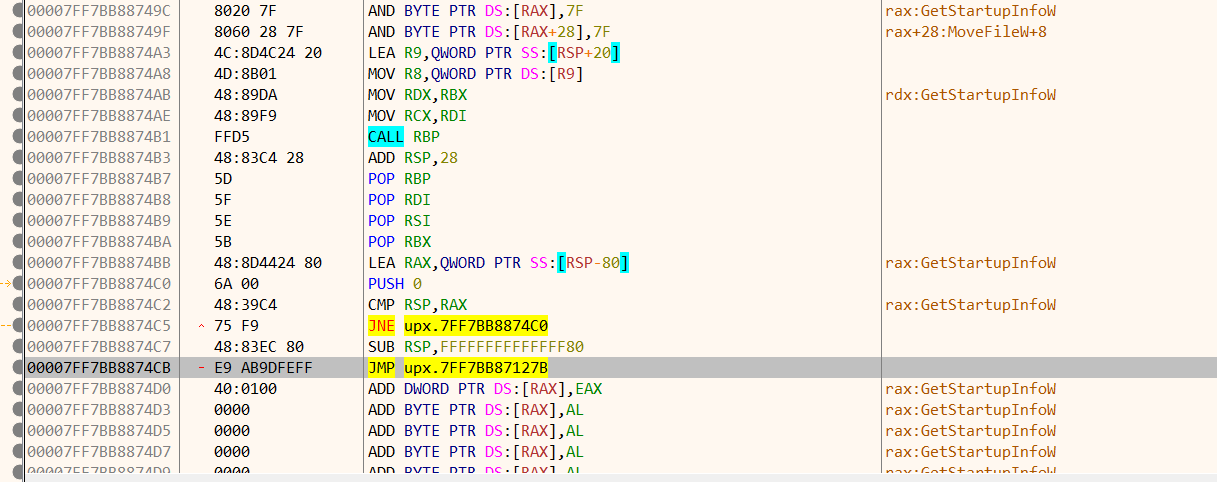

回到“CPU”窗口，可以看到在RIP不远处有一个大跳（RIP在0x00007FF7BB887423处)

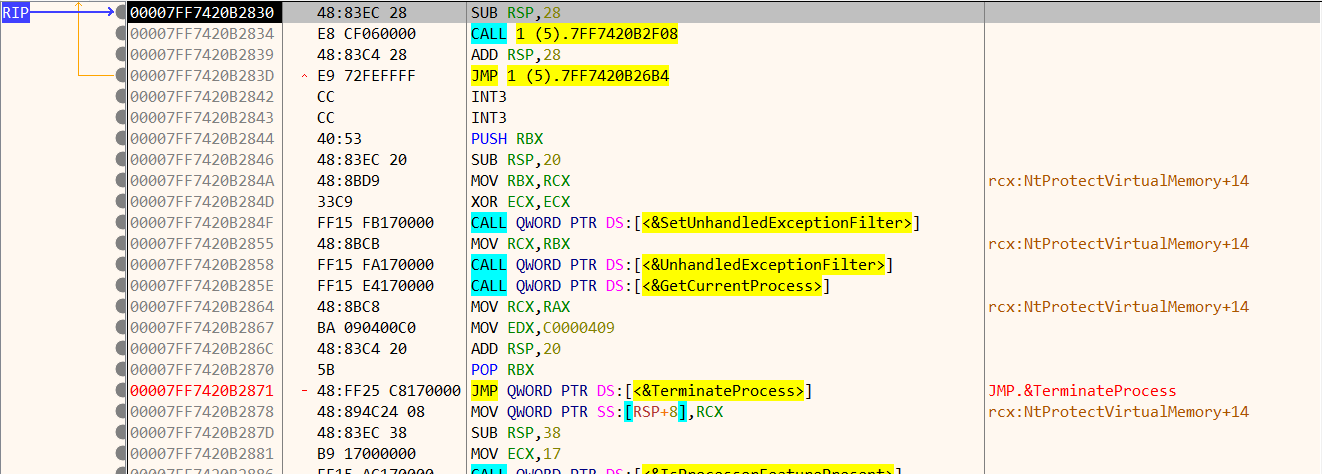

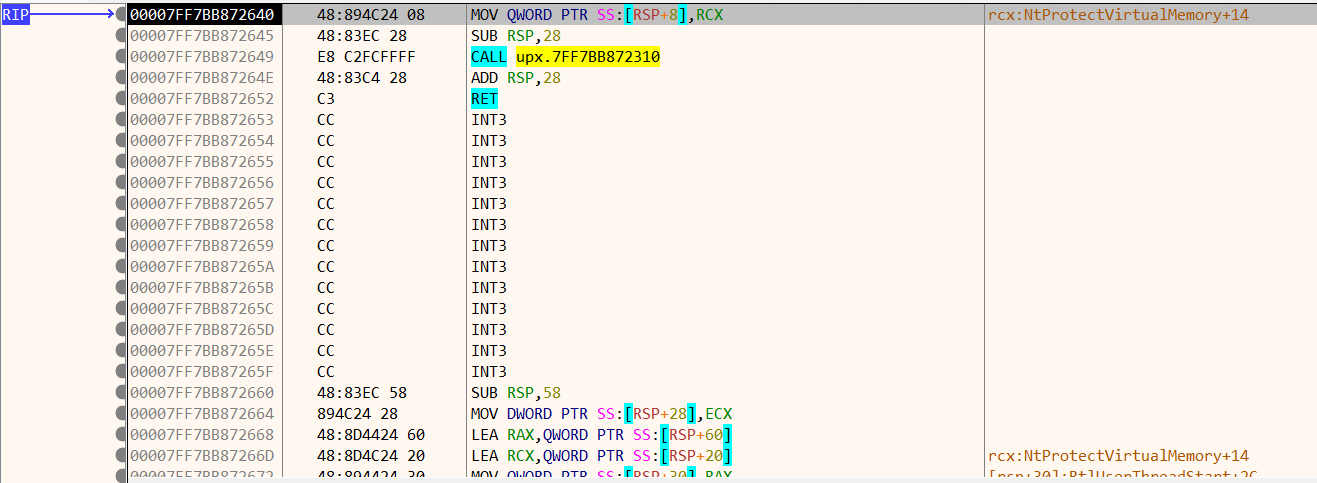

跟进去，还有个跳转表，继续跟进，可以看到程序的OEP了

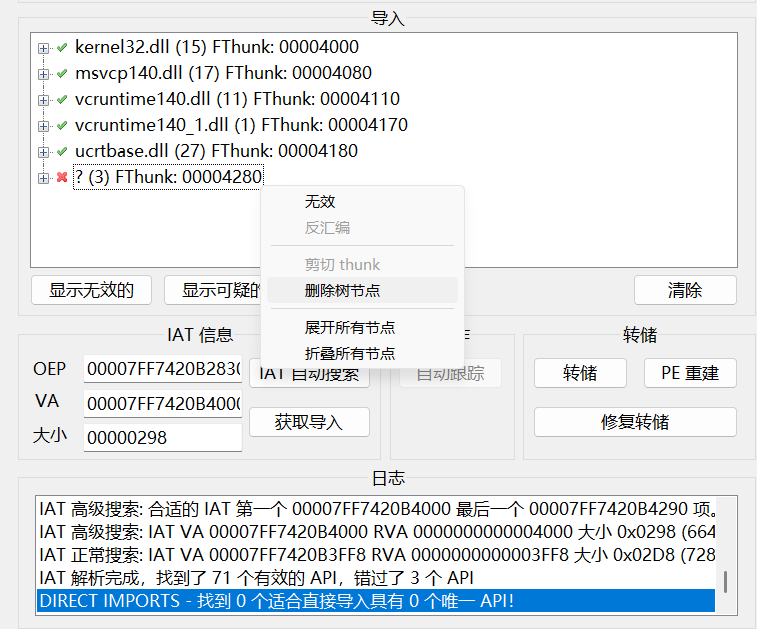

然后在此处使用scylla dump出程序，并且修复IAT，得到upx_dump_SCY.exe，可以分析了
分析main函数，发现每个输入的字符异或了0x21，而非末位字符还异或了原来的下一位。由于异或有交换律，所以解密逻辑可以是：先对每个处理完的字符异或0x21，然后再从倒数第二位开始和下一位异或，这样就恢复了复原出了flag（但是给的密文少了最后一位，即字符串的结束符。根据最后一位和倒数第二位的关系0x56=125 ^ 0x21 ^ 末位 得出：末位=10，所以末位^0x21=43，将密文补充完整）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80//main函数
__int64 sub_7FF6FC2718A0()
{
char *v0; // rdi
__int64 i; // rcx
FILE *Stream; // rax
_BYTE v4[32]; // [rsp+0h] [rbp-20h] BYREF
char v5; // [rsp+20h] [rbp+0h] BYREF
_DWORD cipher[44]; // [rsp+30h] [rbp+10h]
char flag[132]; // [rsp+E0h] [rbp+C0h] BYREF
int length; // [rsp+164h] [rbp+144h]
_BYTE v9[60]; // [rsp+188h] [rbp+168h]
int j; // [rsp+1C4h] [rbp+1A4h]
int Char; // [rsp+1E4h] [rbp+1C4h]
int k; // [rsp+204h] [rbp+1E4h]
v0 = &v5;
for ( i = 130LL; i; --i )
{
*(_DWORD *)v0 = -858993460;
v0 += 4;
}
sub_7FF6FC271375((__int64)&word_7FF6FC28200E);
cipher[0] = 35;
cipher[1] = 43;
cipher[2] = 39;
cipher[3] = 54;
cipher[4] = 51;
cipher[5] = 60;
cipher[6] = 3;
cipher[7] = 72;
cipher[8] = 100;
cipher[9] = 11;
cipher[10] = 29;
cipher[11] = 118;
cipher[12] = 123;
cipher[13] = 16;
cipher[14] = 11;
cipher[15] = 58;
cipher[16] = 63;
cipher[17] = 101;
cipher[18] = 118;
cipher[19] = 41;
cipher[20] = 21;
cipher[21] = 55;
cipher[22] = 28;
cipher[23] = 10;
cipher[24] = 8;
cipher[25] = 33;
cipher[26] = 62;
cipher[27] = 60;
cipher[28] = 61;
cipher[29] = 22;
cipher[30] = 11;
cipher[31] = 36;
cipher[32] = 41;
cipher[33] = 36;
cipher[34] = 86;
sub_7FF6FC27119F((__int64)aPleaseInputYou); // "please input your flag: "
Stream = _acrt_iob_func(0);
fgets(flag, 100, Stream);
length = j_strlen(flag);
for ( j = 0; j < length; ++j )
{
Char = flag[j] ^ 0x21;
if ( j < length - 1 )
Char ^= flag[j + 1];
v9[j] = Char;
}
for ( k = 0; k < 35; ++k )
{
if ( (char)v9[k] != cipher[k] )
{
sub_7FF6FC27119F((__int64)aYouWillNeverGe);// "you will never get the flag!!!!\n"
break;
}
}
sub_7FF6FC271311(v4, qword_7FF6FC27AD00);
return 0LL;
}解密脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15enc=[
0x23, 0x2b, 0x27, 0x36, 0x33, 0x3c, 0x03, 0x48,
0x64, 0x0b, 0x1d, 0x76, 0x7b, 0x10, 0x0b, 0x3a,
0x3f, 0x65, 0x76, 0x29, 0x15, 0x37, 0x1c, 0x0a,
0x08, 0x21, 0x3e, 0x3c, 0x3d, 0x16, 0x0b, 0x24,
0x29, 0x24, 0x56, 43
]
xored=[]
for i in range(len(enc)):
xored.append(enc[i]^0x21)
#print(xored)
for i in range(len(xored)-2,-1,-1):
xored[i]=xored[i]^xored[i+1]
flag=''.join(chr(i) for i in xored)
print(flag)
maze
附件程序main函数逻辑如下，wasd迷宫题，迷宫在函数maze_init中
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94int __fastcall main(int argc, const char **argv, const char **envp)
{
unsigned __int64 count; // rax
int v4; // ebx
__int64 index; // r9
int v6; // r11d
unsigned __int64 y; // r8
__int64 x; // r10
unsigned __int64 n0x37_1; // rdi
char *Format; // rcx
_BYTE flag[1008]; // [rsp+20h] [rbp-408h]
maze_init();
printf(asc_140004138);
printf(&Format_);
while ( 1 )
{
LABEL_2:
while ( 1 )
{
printf(asc_140004190);
scanf("%s");
count = -1LL;
do
++count;
while ( flag[count] );
if ( count <= 999 )
break;
printf(&Format__0);
}
v4 = 1;
index = 0LL;
v6 = 1;
y = 1LL;// 起点y
x = 1LL;// 起点x
if ( (int)count > 0 )
break;
LABEL_19:
Format = (char *)&byte_140004118;
LABEL_20:
printf(Format);
printf(&Format__1);
}
n0x37_1 = 1LL;
while ( 1 )
{
switch ( flag[index] )
{
case 'A':
case 'a':
--v4;
--x;
--n0x37_1;
break;
case 'D':
case 'd':
++v4;
++x;
++n0x37_1;
break;
case 'S':
case 's':
++v6;
++y;
break;
case 'W':
case 'w':
--v6;
--y;
break;
default:
printf(&Format__2);
printf(&Format__1);
goto LABEL_2;
}
if ( y > 0x37 || n0x37_1 > 0x37 )
{
Format = (char *)&unk_1400040D8;
goto LABEL_20;
}
if ( byte_140005660[56 * y + x] == 49 )
{
Format = (char *)&unk_1400040F8;
goto LABEL_20;
}
if ( y == 15 && x == 32 )
break;
if ( ++index >= (int)count )
goto LABEL_19;
}
printf(asc_1400041E0);
printf("moectf{%s}\n");
return 0;
}maze_init函数：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116__int64 maze_init()
{
const char *all_1; // r9
const char **v1; // rbx
int n56_2; // r11d
__int64 v3; // r10
__int64 n56; // rax
int v5; // r8d
__int64 i; // rax
char v7; // dl
__int64 v8; // rcx
_QWORD v9[56]; // [rsp+20h] [rbp-E0h] BYREF
v9[1] = "10100000000000000010000011011101011111111101011100000111";
all_1 = "11111111111111111111111111111111111111111111111111111111";
v9[0] = "11111111111111111111111111111111111111111111111111111111";
v9[2] = "10111010111111111010111011000001000001000001000101110111";
v9[3] = "10000010000010000010001011011111111101110111011101110111";
v9[4] = "10111111111011101110111011010000000000010100010001110111";
v9[5] = "10100000001000101000100011010101111111011101110101110111";
v9[6] = "10101011111110111011101011010101000001000000010101110111";
v9[7] = "10101010000010100000101011110101110101111101111111110111";
v9[8] = "10111010111010101111101011100101000100000101000101110111";
v9[9] = "10000010001010001000001011001111011111010101011101110111";
v9[10] = "11111011101011111011111111101000100000101100101001110111";
v9[11] = "10001010001000100010000010001010011000100010010011000001";
v9[12] = "10111010111110101010111011011001011111010101011101011101";
v9[13] = "10001010001000001010001011000101000100000101000101011101";
v9[14] = "11101011101111111011101011110101110111111101110101011101";
v9[15] = "10001000101000001010001011000100010100000101000101011101";
v9[16] = "10111111101011101110111011011111110101110111011101011101";
v9[17] = "10001000001000100000001011000100000100010000000101011001";
v9[18] = "11101011111011111111101011110101111101111111110101011011";
v9[19] = "10101000000010001000101011010100000001000100010101011011";
v9[20] = "10101111111110101010101011010111111111010101010101011011";
v9[21] = "10100000000000100010101011010000000000010001010101011011";
v9[22] = "10111111111111111110111011011111111111111111011101011011";
v9[23] = "10000000001111000000000011110111010000111100011111011011";
v9[24] = "11101111100000011011011111111010110111011101100001011011";
v9[25] = "11101111111111111011011111111101110111101101100001011011";
v9[26] = "10001000111111000010000011111010110111011101100001011011";
v9[27] = "10111010111111111010111011110111010000111101100001010011";
v9[28] = "10000010000010000010001011111111111111111101100001010111";
v9[29] = "10111111111011101110111011110001000110001101100001010001";
v9[30] = "10100000001000101000100011110111011101111101100001011101";
v9[31] = "10101011111110111011101011110001000101111101100001011101";
v9[32] = "10101010000010100000101011111101011101111101100001011101";
v9[33] = "10111010111010101111101011110001000110001101100001011101";
v9[34] = "10000010001010101000001011111111111111111101100001011101";
v9[35] = "11111011101011111011111110000000000000001101100001011101";
v9[36] = "10001010001000100010000011111111111111111100110011011101";
v9[37] = "10111010111110101010111010010000000011111110001111011101";
v9[38] = "10001010001000001010001010110111000001111110100101011101";
v9[39] = "11101011101111111011101000110011001111111100110111011101";
v9[40] = "10001000101000001010001011111111111111111111110111010001";
v1 = (const char **)v9;
v9[55] = "11111111111111111111111111111111111111111111111111111111";
v9[41] = "10111111101011101110111010100001001100000000000011011011";
n56_2 = 0;
v9[42] = "10001000001000100000001011111111111101011101111001011011";
v3 = 0LL;
v9[43] = "10101011111011111111101011000000000001000100010111011011";
v9[44] = "10101000000010001000101010010111111111111111111111011011";
v9[45] = "10101111111110101010101010110111111111111111111101011011";
v9[46] = "10100000000000100010101011100000000000000000000011011011";
v9[47] = "10111111111111111110011011111111111111111111111011011011";
v9[48] = "10000011111111111111000010000000000000000000000000011001";
v9[49] = "11111011111111111111111111111111111111111111111111111101";
v9[50] = "11111011100001100110110111000000000000000000000111111101";
v9[51] = "11111011101111011010000111011111111111111111110111111101";
v9[52] = "11111011100001000010110110000111111111111111110000000001";
v9[53] = "11111011101111011010110111101111111111111111111111111111";
v9[54] = "11110000000000011000110000000000000000000000000000000011";
while ( 1 )
{
n56 = -1LL;
do
++n56;
while ( all_1[n56] );
if ( n56 != 56 )
{
printf((char *)&Format__3);
exit(1);
}
v5 = 0;
for ( i = 0LL; i < 56; ++i )
{
v7 = all_1[i];
if ( (unsigned __int8)(v7 - 48) > 1u )
{
printf((char *)&Format__4);
exit(1);
}
v8 = v3 + i;
++v5;
byte_140005660[v8] = v7;
}
++n56_2;
++v1;
v3 += 56LL;
if ( n56_2 >= 56 )
break;
all_1 = *v1;
}
if ( n48 != 48 )
{
printf((char *)&Format);
exit(1);
}
if ( n48_0 != 48 )
{
printf((char *)&Format__5);
exit(1);
}
return i;
}使用神奇妙妙工具得到迷宫路径：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122from mycode import maze
Maze = [
"11111111111111111111111111111111111111111111111111111111",
"10100000000000000010000011011101011111111101011100000111",
"10111010111111111010111011000001000001000001000101110111",
"10000010000010000010001011011111111101110111011101110111",
"10111111111011101110111011010000000000010100010001110111",
"10100000001000101000100011010101111111011101110101110111",
"10101011111110111011101011010101000001000000010101110111",
"10101010000010100000101011110101110101111101111111110111",
"10111010111010101111101011100101000100000101000101110111",
"10000010001010001000001011001111011111010101011101110111",
"11111011101011111011111111101000100000101100101001110111",
"10001010001000100010000010001010011000100010010011000001",
"10111010111110101010111011011001011111010101011101011101",
"10001010001000001010001011000101000100000101000101011101",
"11101011101111111011101011110101110111111101110101011101",
"10001000101000001010001011000100010100000101000101011101",
"10111111101011101110111011011111110101110111011101011101",
"10001000001000100000001011000100000100010000000101011001",
"11101011111011111111101011110101111101111111110101011011",
"10101000000010001000101011010100000001000100010101011011",
"10101111111110101010101011010111111111010101010101011011",
"10100000000000100010101011010000000000010001010101011011",
"10111111111111111110111011011111111111111111011101011011",
"10000000001111000000000011110111010000111100011111011011",
"11101111100000011011011111111010110111011101100001011011",
"11101111111111111011011111111101110111101101100001011011",
"10001000111111000010000011111010110111011101100001011011",
"10111010111111111010111011110111010000111101100001010011",
"10000010000010000010001011111111111111111101100001010111",
"10111111111011101110111011110001000110001101100001010001",
"10100000001000101000100011110111011101111101100001011101",
"10101011111110111011101011110001000101111101100001011101",
"10101010000010100000101011111101011101111101100001011101",
"10111010111010101111101011110001000110001101100001011101",
"10000010001010101000001011111111111111111101100001011101",
"11111011101011111011111110000000000000001101100001011101",
"10001010001000100010000011111111111111111100110011011101",
"10111010111110101010111010010000000011111110001111011101",
"10001010001000001010001010110111000001111110100101011101",
"11101011101111111011101000110011001111111100110111011101",
"10001000101000001010001011111111111111111111110111010001",
"10111111101011101110111010100001001100000000000011011011",
"10001000001000100000001011111111111101011101111001011011",
"10101011111011111111101011000000000001000100010111011011",
"10101000000010001000101010010111111111111111111111011011",
"10101111111110101010101010110111111111111111111101011011",
"10100000000000100010101011100000000000000000000011011011",
"10111111111111111110011011111111111111111111111011011011",
"10000011111111111111000010000000000000000000000000011001",
"11111011111111111111111111111111111111111111111111111101",
"11111011100001100110110111000000000000000000000111111101",
"11111011101111011010000111011111111111111111110111111101",
"11111011100001000010110110000111111111111111110000000001",
"11111011101111011010110111101111111111111111111111111111",
"11110000000000011000110000000000000000000000000000000011",
"11111111111111111111111111111111111111111111111111111111"
]
start=(1,1)
end=(15,32)
path=maze.solve(Maze,start,end)
print(path)
#mycode.maze:
from collections import deque
def solve(maze, start, end, directions=None, wall='1', free='0'):
"""
参数:
maze: 二维字符串列表
start: 起点坐标 (row, col)
end: 终点坐标 (row, col)
directions: 自定义方向指令 (默认WASD)
wall: 墙字符 (默认'1')
free: 通路字符 (默认'0')
返回:
移动指令字符串 或 None(无解)
"""
if directions is None:
directions = {
'W': (-1, 0), # 上
'A': (0, -1), # 左
'S': (1, 0), # 下
'D': (0, 1) # 右
}
rows, cols = len(maze), len(maze[0])
# 坐标验证
def is_valid(pos):
r, c = pos
return (0 <= r < rows and 0 <= c < cols and maze[r][c] == free)
if not is_valid(start):
raise ValueError(f"无效起点 {start}")
if not is_valid(end):
raise ValueError(f"无效终点 {end}")
# BFS核心（修复了变量名冲突）
queue = deque([(start[0], start[1], "")])
visited = set([(start[0], start[1])])
while queue:
row, col, current_path = queue.popleft() # 改名为 current_path
if (row, col) == end:
return current_path
for move, (dr, dc) in directions.items():
new_row, new_col = row + dr, col + dc
if (0 <= new_row < rows and 0 <= new_col < cols and
maze[new_row][new_col] == free and # 使用通路字符 free
(new_row, new_col) not in visited):
visited.add((new_row, new_col))
queue.append((new_row, new_col, current_path + move)) # 使用 current_path
return None # 无解
flower

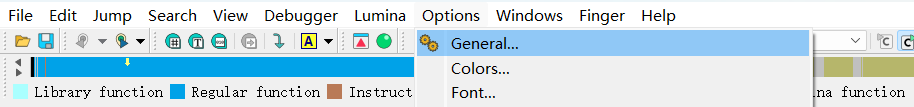

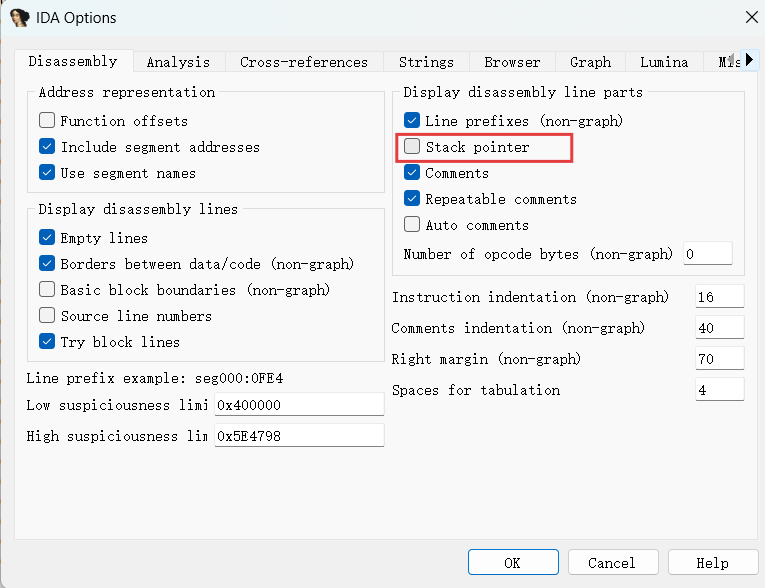

附件程序用IDA打开，在汇编界面上下滑动可以找到花指令引起的红色栈帧报错。打开IDA工具栏的“Options”选项的“General”，勾选“Stackpointer”，可以看到栈帧信息

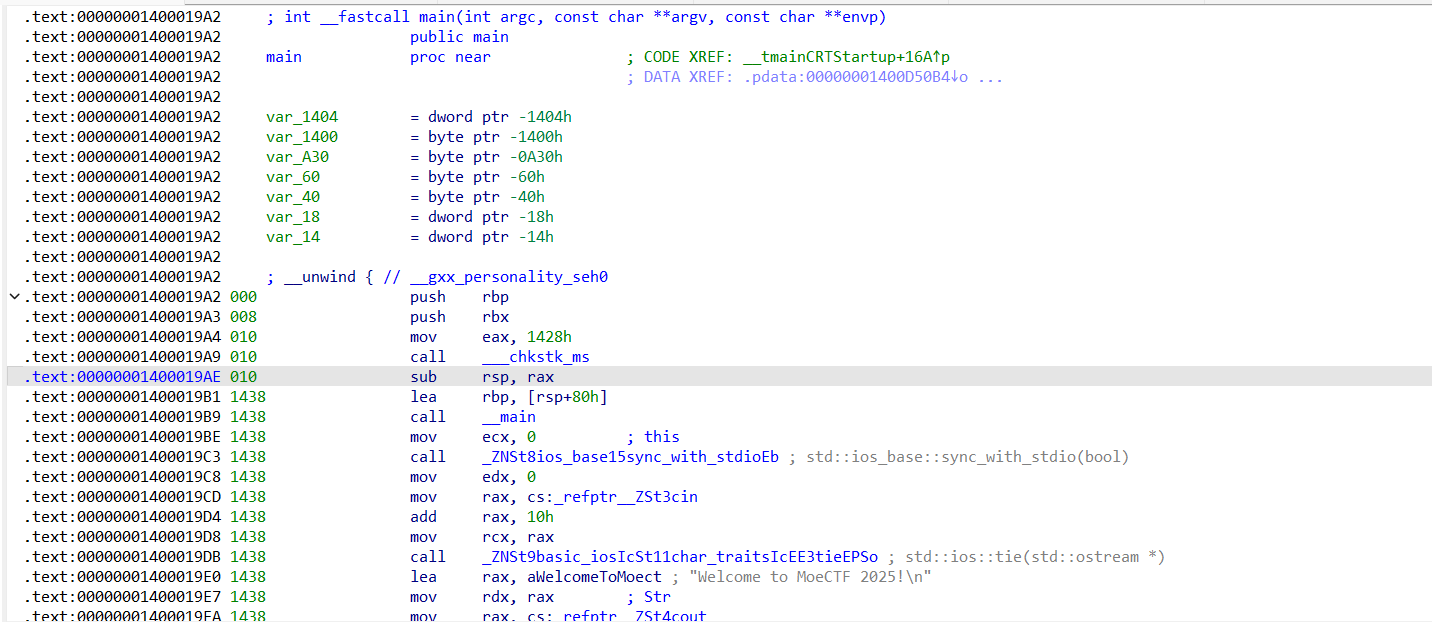

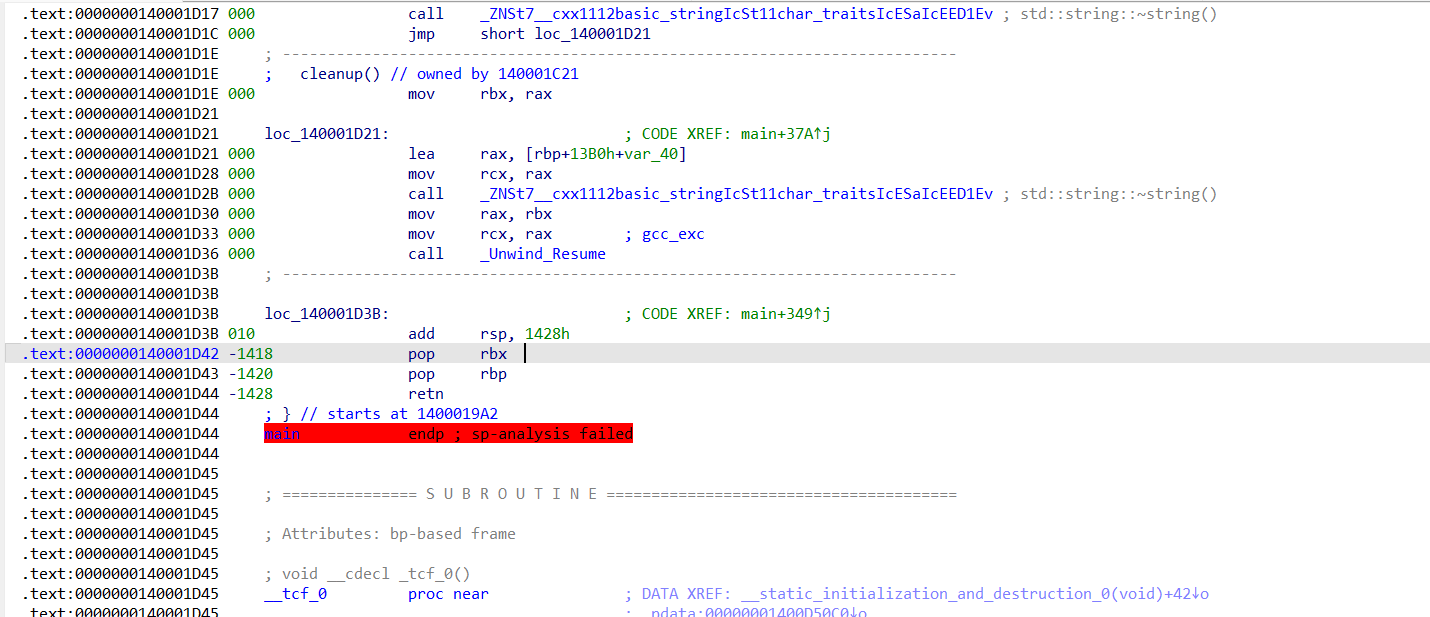

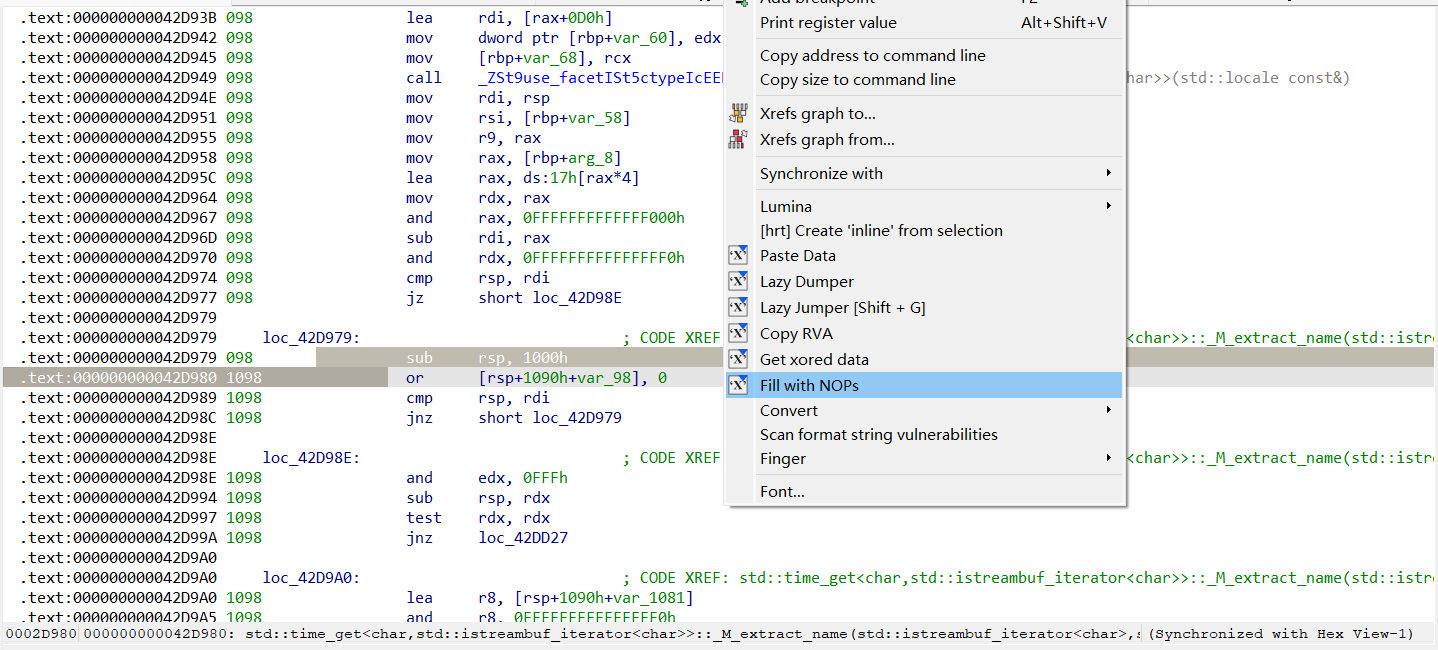

可以看到红色报错的函数栈帧超过了1000，有点反常，找到栈帧发生突变的地方，发现用sub rsp,1000h改变了栈帧，把这条指令nop掉。本题这个类型的花指令占绝大多数，需要耐心的一个一个nop掉。（还有sub rsp,400h的，主要留意栈帧大于100）

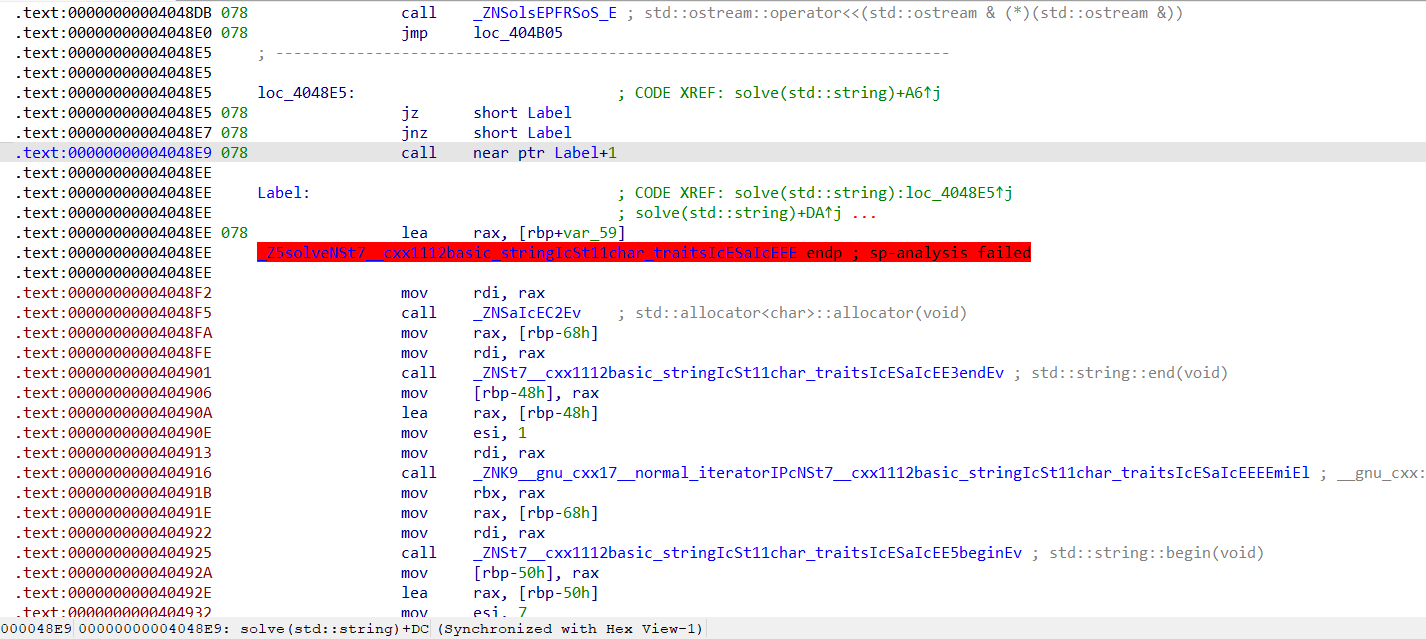

还有另一种花指令：

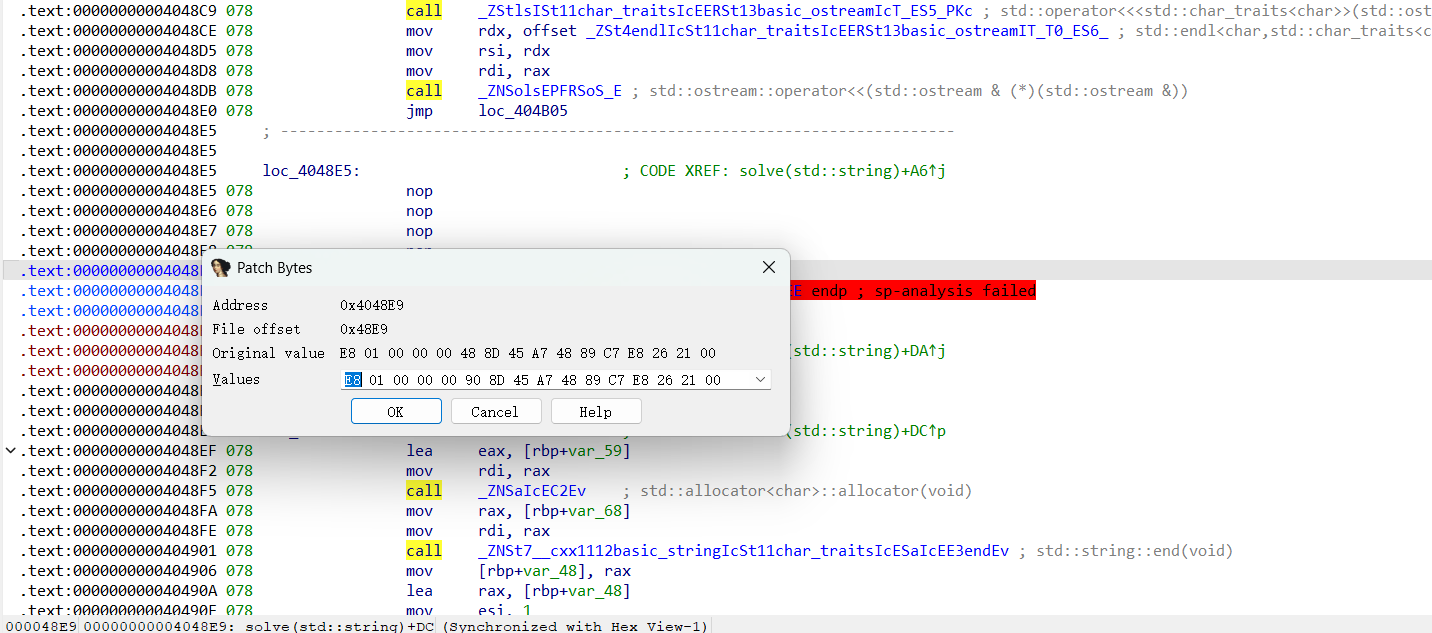

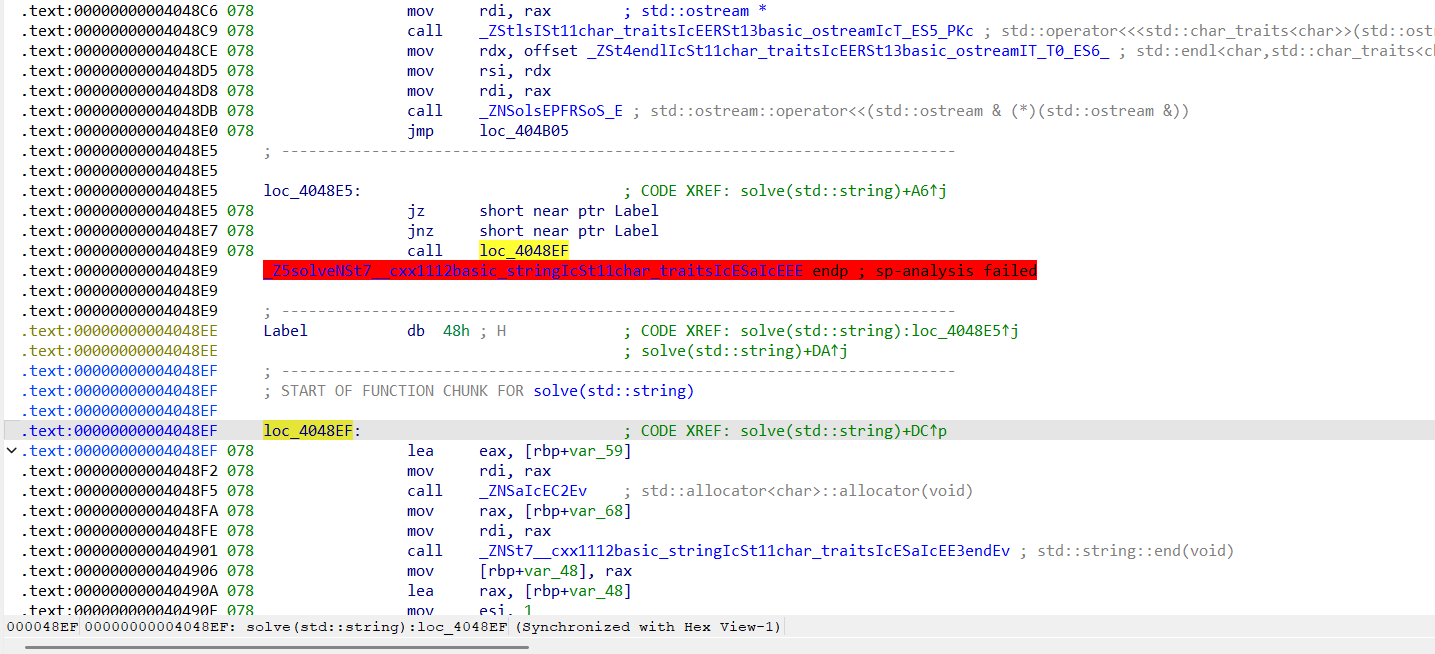

图中Label+1是0x004048EF，被0x004048EE处的指令覆盖住了，所以undefine一下，IDA就会自动纠错。把没用的指令nop掉

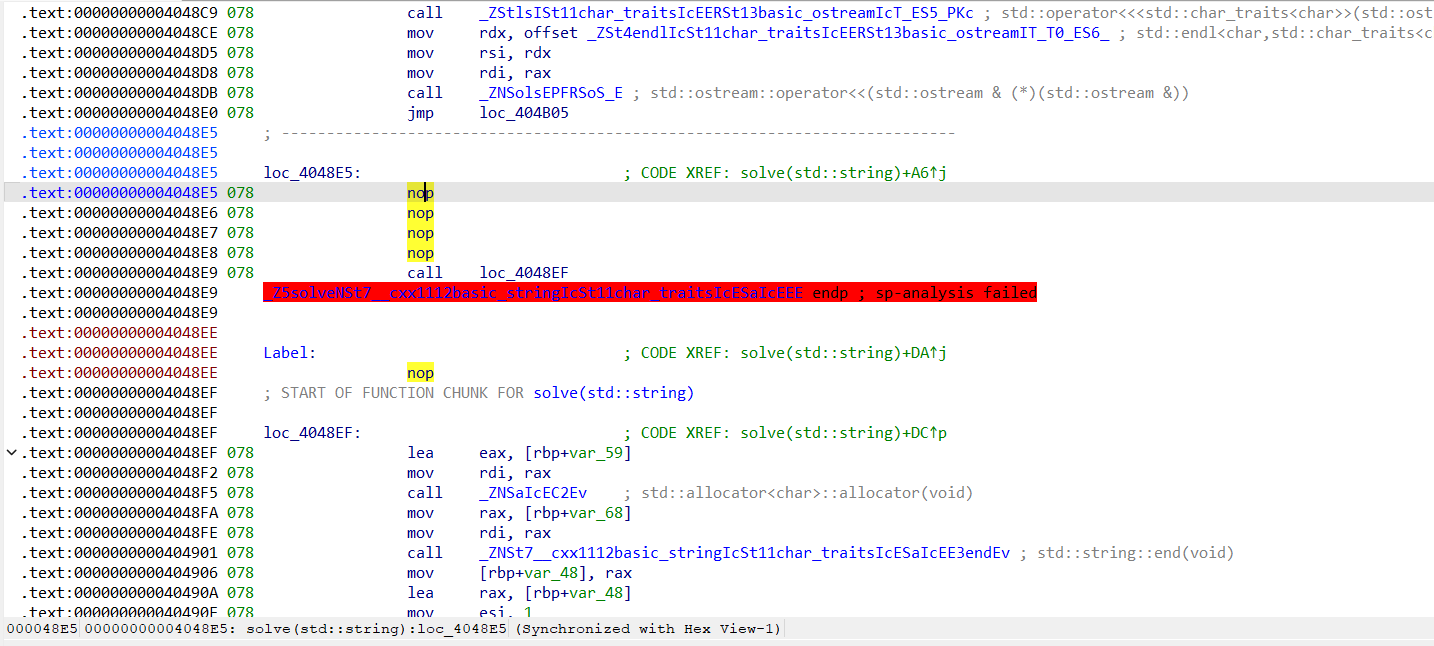

接下来要做的修改有2点。首先可以看到0x004048E5处有一个恒跳花指令，这个要nop掉。
然后是call loc_4048EF，由于call是会占用栈帧的，更何况call一个标签没有ret恢复栈帧，后面栈帧还是会报错（这里有一个试错过程，不把call改成jmp的话，函数undefine+code+create function后依旧反编译不了）。做法就是工具栏edit->patch program->change byte，把十六进制码E8改成E9
然后就是选中函数名undefine+code+create function了，就可以正常反编译了
main函数逻辑主要是把flag掐头去尾，中间部分加密后比对
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61unsigned __int64 __fastcall solve(_QWORD *flag)
{
char v1; // bl
bool v2; // r12
__int64 v3; // rax
__int64 v4; // rbx
__int64 v5; // rax
char *flag[i]; // rax
__int64 v7; // rax
char v9; // [rsp+17h] [rbp-59h] BYREF
int i; // [rsp+18h] [rbp-58h]
int len; // [rsp+1Ch] [rbp-54h]
__int64 flag_start; // [rsp+20h] [rbp-50h] BYREF
__int64 flag_end; // [rsp+28h] [rbp-48h] BYREF
void *fl4g[5]; // [rsp+30h] [rbp-40h] BYREF
unsigned __int64 v15; // [rsp+58h] [rbp-18h]
__int64 savedregs; // [rsp+70h] [rbp+0h] BYREF
v15 = __readfsqword(0x28u);
v1 = 0;
v2 = 1;
if ( (unsigned __int64)length((__int64)flag) > 7 )
{
substr(fl4g, flag, 0LL, 7uLL);
v1 = 1;
if ( !(unsigned __int8)cmp((__int64)fl4g, (__int64)"moectf{") && *(_BYTE *)get_last_str(flag) == 125 )
v2 = 0;
}
if ( v1 )
std::string::~string(fl4g);
if ( v2 )
{
v3 = cout((std::ostream *)&std::cout);
out(v3, (__int64 (*)(void))std::endl<char,std::char_traits<char>>);
}
else
{
std::allocator<char>::allocator((unsigned int)&savedregs - 89);
flag_end = getEnd(flag);
v4 = cutTail(&flag_end, 1LL);
flag_start = getStart((__int64)flag);
v5 = cutHead(&flag_start, 7LL);
std::string::basic_string<__gnu_cxx::__normal_iterator<char *,std::string>,void>(fl4g, v5, v4, (__int64)&v9);// 掐头去尾
std::string::operator=(flag, fl4g);
std::string::~string(fl4g);
std::allocator<char>::~allocator();
len = length((__int64)flag);
if ( len == 32 )
{
for ( i = 0; i < len; ++i )
{
flag[i] = (char *)toList(flag, i); // flag[i]
if ( (unsigned int)encode(*flag[i]) != enc[i] )
break;
}
}
v7 = cout((std::ostream *)&std::cout);
out(v7, (__int64 (*)(void))std::endl<char,std::char_traits<char>>);
}
return v15 - __readfsqword(0x28u);

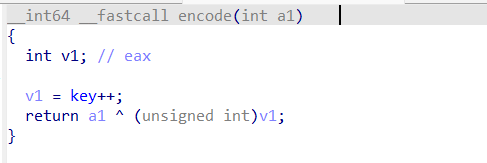

}加密函数encode如下，就是把flag[i]和key异或，key会递增。需要注意的是，静态分析下得到的key是不正确的（静态分析得到的key是0x23，但是动态调试会发现程序运行到此处key变成0x29），动调得到的key才能解密出flag
解密脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13data = [
0x4F, 0x1A, 0x59, 0x1F, 0x5B, 0x1D, 0x5D, 0x6F, 0x7B, 0x47, 0x7E,
0x44, 0x6A, 0x07, 0x59, 0x67, 0x0E, 0x52, 0x08, 0x63, 0x5C, 0x1A, 0x52,
0x1F, 0x20, 0x7B, 0x21, 0x77, 0x70, 0x25, 0x74, 0x2B
]
key=0x29
result=[]
for i in range(len(data)):
plaintext=(data[i]^key)&0xff
key+=1
result.append(plaintext)
flag=''.join(chr(x) for x in result)
print(flag)
tea
IDA打开附件程序，main函数逻辑是将输入的flag分成10份，每次取两份进行加密，加密出来的数据和enc比较。key和enc已经给定
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70//main函数
int __fastcall main(int argc, const char **argv, const char **envp)
{
char *v3; // rdi
__int64 i; // rcx
_BYTE v6[32]; // [rsp+0h] [rbp-20h] BYREF
char v7; // [rsp+20h] [rbp+0h] BYREF
_DWORD key[12]; // [rsp+28h] [rbp+8h] BYREF
_DWORD enc[20]; // [rsp+58h] [rbp+38h]
_DWORD fl4g[20]; // [rsp+A8h] [rbp+88h] BYREF
_DWORD Flag[20]; // [rsp+F8h] [rbp+D8h] BYREF
char flag[64]; // [rsp+148h] [rbp+128h] BYREF
size_t length; // [rsp+188h] [rbp+168h]
int j; // [rsp+1A4h] [rbp+184h]
unsigned int part1; // [rsp+1C8h] [rbp+1A8h] BYREF
int part2; // [rsp+1CCh] [rbp+1ACh]
int v17; // [rsp+1E4h] [rbp+1C4h]
int k; // [rsp+204h] [rbp+1E4h]
v3 = &v7;
for ( i = 130LL; i; --i )
{
*(_DWORD *)v3 = -858993460;
v3 += 4;
}
sub_7FF6DAA21384(byte_7FF6DAA33015);
key[0] = 289739801;
key[1] = 427884820;
key[2] = 1363251608;
key[3] = 269567252;
enc[0] = 2026214571;
enc[1] = 578894681;
enc[2] = 1193947460;
enc[3] = -229306230;
enc[4] = 73202484;
enc[5] = 961145356;
enc[6] = -881456792;
enc[7] = 358205817;
enc[8] = -554069347;
enc[9] = 119347883;
enc[10] = 0;
memset(fl4g, 0, 44uLL);
memset(Flag, 0, 44uLL);
printf(&You_are_wrong___);
scanf("%s", flag);
length = j_strlen(flag);
j_memcpy(fl4g, flag, length);
for ( j = 0; j < 5; ++j )
{
part1 = fl4g[2 * j];
part2 = fl4g[2 * j + 1];
tea(&part1, key);// 这里传的是地址，tea内可以通过part1的地址得到part2
Flag[2 * j] = part1;
Flag[2 * j + 1] = part2;
}
v17 = 1;
for ( k = 0; k < 11; ++k )
{
if ( Flag[k] != enc[k] )
{
v17 = 0;
printf("You are wrong!!");
break;
}
}
if ( v17 == 1 )
printf("Congratulations!!!!");
sub_7FF6DAA21320(v6, &unk_7FF6DAA2AE60);
return 0;
}加密函数是改动的tea加密
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23__int64 __fastcall Tea(unsigned int *part1, _DWORD *key)
{
__int64 n4; // rax
int delta; // [rsp+24h] [rbp+4h]
unsigned int p1; // [rsp+44h] [rbp+24h]
unsigned int p2; // [rsp+64h] [rbp+44h]
int i; // [rsp+A4h] [rbp+84h]
sub_7FF6DAA21384((__int64)&byte_7FF6DAA33015);
delta = 0;
p1 = *part1;
p2 = part1[1];
for ( i = 0; i < 32; ++i )
{
delta += 1131796;
p1 += (key[1] + (p2 >> 5)) ^ (delta + p2) ^ (*key + 16 * p2);
p2 += (key[3] + (p1 >> 5)) ^ (delta + p1) ^ (key[2] + 16 * p1);
}
*part1 = p1;
n4 = 4LL;
part1[1] = p2;
return n4;
}解密逻辑：将tea内的p1 p2位置对调，”+”改成”-“，然后delta从最后一轮的值往回递减就可以了。解密脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44#include<stdio.h>
#include<stdint.h>
void tea_decrypt(uint32_t *a,uint32_t *k) {
uint32_t delta = 1131796 * 32;
uint32_t p1 = *a;
uint32_t p2 = *(a + 1);
for (int i = 0; i < 32; i++) {
p2 -= ((k[3] + (p1 >> 5)) ^ (delta + p1) ^ (k[2] + 16 * p1));
p1 -= ((k[1] + (p2 >> 5)) ^ (delta + p2) ^ (*k + 16 * p2));
delta -= 1131796;
}
*a = p1;
*(a+1)= p2;
}
int main() {
uint32_t key[4];
uint32_t enc[11];
key[0] = 289739801;
key[1] = 427884820;
key[2] = 1363251608;
key[3] = 269567252;
enc[0] = 2026214571;
enc[1] = 578894681;
enc[2] = 1193947460;
enc[3] = -229306230;
enc[4] = 73202484;
enc[5] = 961145356;
enc[6] = -881456792;
enc[7] = 358205817;
enc[8] = -554069347;
enc[9] = 119347883;
enc[10] = 0;
char flag[45] = { 0 };
for (int i = 0; i < 5; i++) {
uint32_t block[2] = {enc[2*i],enc[2*i+1]};
tea_decrypt(block, key);
for (int j = 0; j < 4; j++) {
flag[8 * i + j] = (block[0] >> (j * 8)) & 0xff;//右移j个字符，然后取最后一个
flag[8 * i + j + 4] = (block[1] >> (j * 8)) & 0xff;
}
}
printf("%s", flag);
return 0;
}
ez3
附件程序main函数逻辑主要是获取flag，然后掐头去尾，对中间部分进行check。main函数：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66int __fastcall main(int argc, const char **argv, const char **envp)
{
char v3; // bl
bool v4; // r12
__int64 v5; // rbx
__int64 v6; // rax
char v8; // [rsp+Fh] [rbp-71h] BYREF
__int64 Start; // [rsp+10h] [rbp-70h] BYREF
__int64 end; // [rsp+18h] [rbp-68h] BYREF
_BYTE flag[32]; // [rsp+20h] [rbp-60h] BYREF
_QWORD fl4g[8]; // [rsp+40h] [rbp-40h] BYREF
fl4g[5] = __readfsqword(0x28u);
printf("Input your flag:\n> ", argv, envp);
fflush(stdout);
std::string::basic_string(flag);
cin(&std::cin);
if ( length(flag) == 42 )
{
v3 = 0;
v4 = 1;
if ( length(flag) > 7 )
{
substr(fl4g, flag, 0LL, 7LL);
v3 = 1;
if ( !cmp(fl4g, "moectf{") && *get_last_str(flag) == 125 )
v4 = 0;
}
if ( v3 )
std::string::~string(fl4g);
if ( v4 )
{
puts("FORMAT ERROR!");
}
else
{
std::allocator<char>::allocator(&v8);
end = getEnd(flag);
v5 = cutTail(&end, 1LL);
Start = getStart(flag);
v6 = cutHead(&Start, 7LL);
std::string::basic_string<__gnu_cxx::__normal_iterator<char *,std::string>,void>(fl4g, v6, v5, &v8);
strcopy(flag, fl4g);
std::string::~string(fl4g);
std::allocator<char>::~allocator(&v8);
std::string::basic_string(fl4g, flag);
LOBYTE(v5) = check(fl4g);
std::string::~string(fl4g);
if ( v5 )
{
puts("OK");
puts("But I don't know what the true flag is");
}
else
{
puts("try again~");
}
}
}
else
{
puts("Length error!");
}
std::string::~string(flag);
return 0;

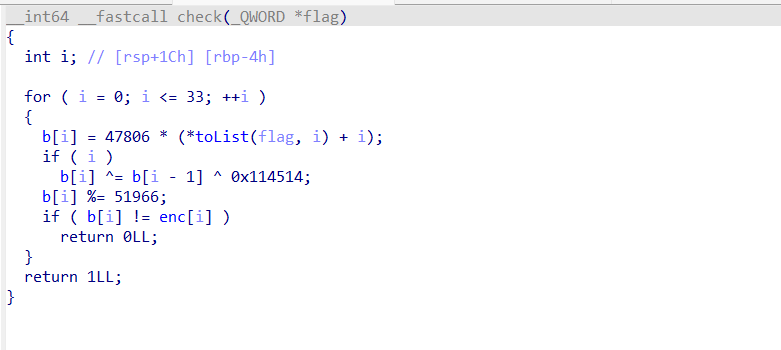

}check函数：
题目提示了z3，所以使用z3约束求解。思路就是复现check函数逻辑，爆破出flag
脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31from z3 import *
enc = [
0x0B1B0, 0x5678, 0x7FF2, 0xA332, 0xA0E8, 0x364C, 0x2BD4,
0xC8FE, 0x4A7C, 0x18, 0x2BE4, 0x4144, 0x3BA6, 0xBE8C, 0x8F7E,
0x35F8, 0x61AA, 0x2B4A, 0x6828, 0xB39E, 0xB542, 0x33EC, 0xC7D8,
0x448C, 0x9310, 0x8808, 0xADD4, 0x3CC2, 0x796, 0xC940, 0x4E32,
0x4E2E, 0x924A, 0x5B5C
]
s=Solver()
flag=[BitVec(f'flag_{i}',32)for i in range(34)]
b=[BitVec(f'b_{i}',32)for i in range(34)]
for i in range(34):
s.add(flag[i]>=32,flag[i]<=126)
for i in range(34):
if i==0:
s.add(b[0]==(47806*flag[0])%51966)
else:
b_value=47806*(flag[i]+i)
b_xored=b_value^(b[i-1]^0x114514)
s.add(b[i]==b_xored%51966)
s.add(b[i]==enc[i])
print("solutions found:")
while s.check()==sat:
model=s.model()
solution=''.join([chr(model[flag[i]].as_long())for i in range(34)])
print(solution)
exception=Or([flag[i]!=model[flag[i]]for i in range(34)])#避免重复情况
s.add(exception)
逆向工程入门指北

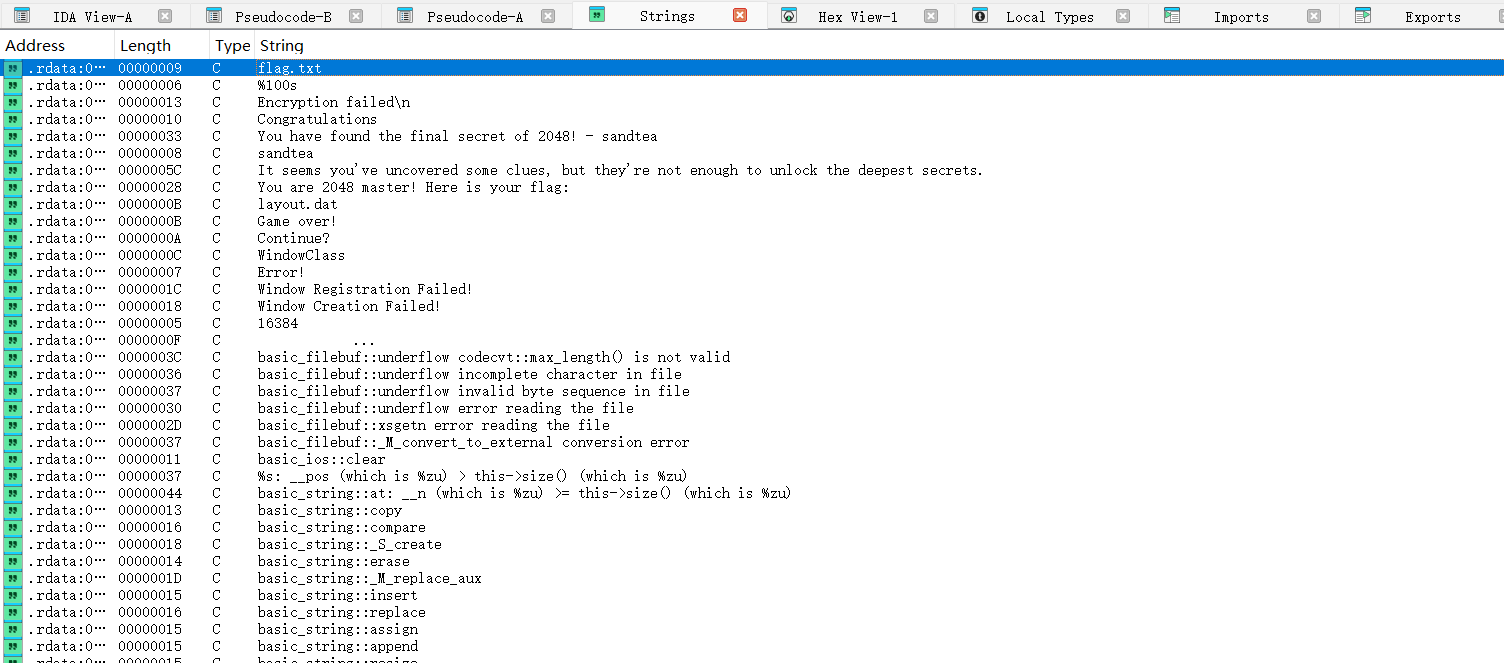

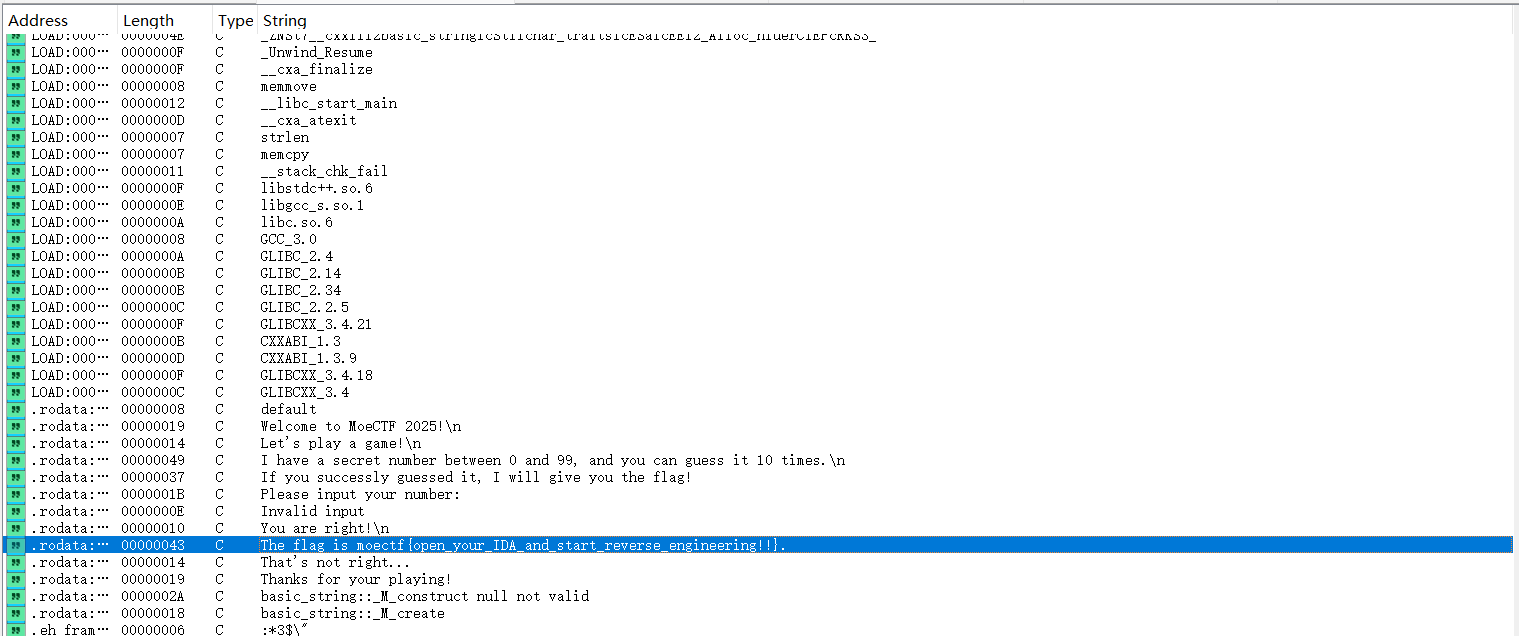

IDA打开附件程序，在字符串窗口可以直接看到flag
week2
base

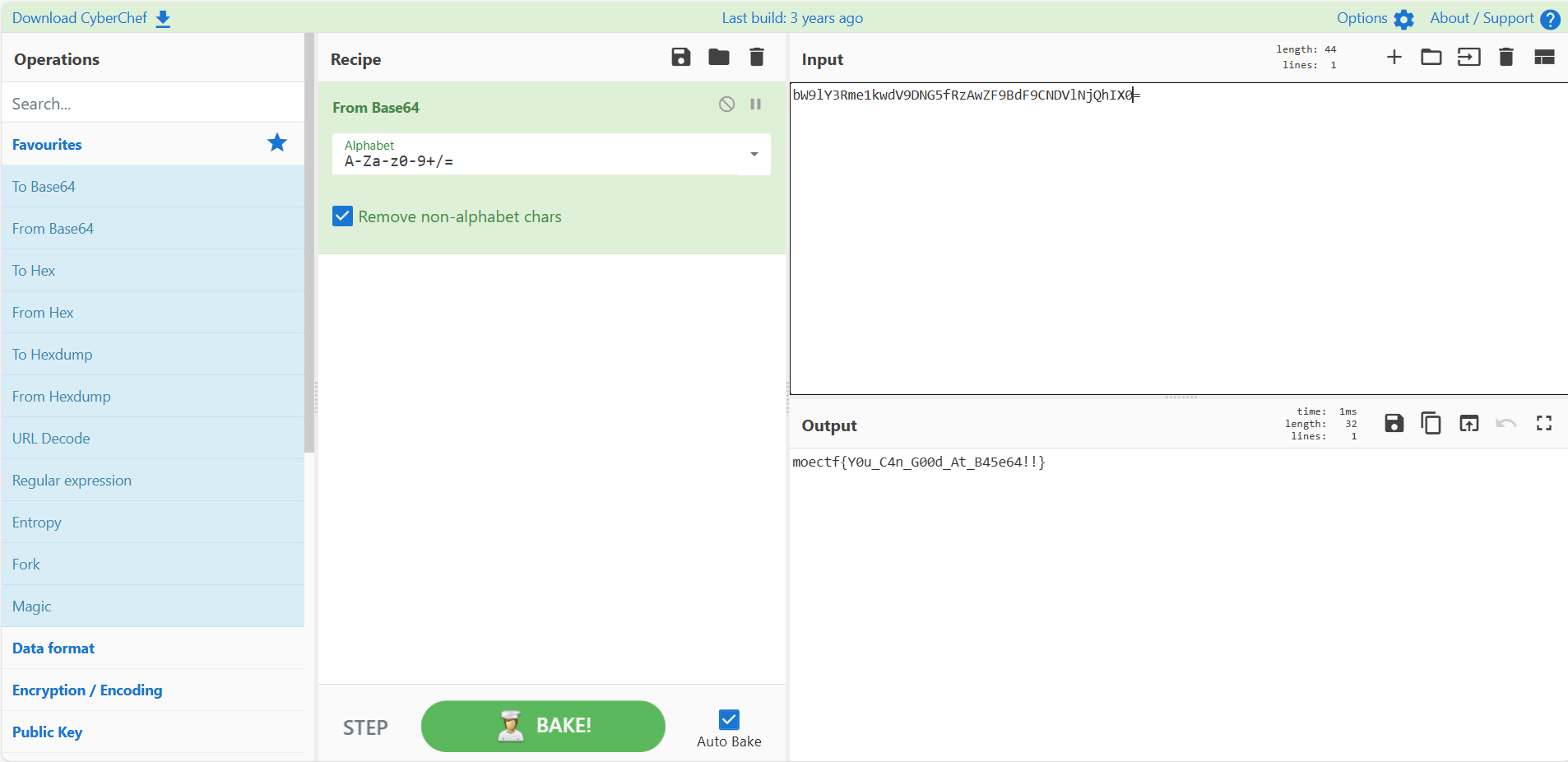

运行附件程序，直接让输入flag。IDA打开分析main函数，发现使用了标准base64加密，并且密文直接给了。cyberchef一把梭
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41//main函数
int __fastcall main(int argc, const char **argv, const char **envp)
{
FILE *Stream; // rax
__int64 v4; // rdx
__int64 length; // rax
unsigned __int64 n; // rax
char *Str1; // rbx
int v8; // eax
char *Format; // rcx
char v11[16]; // [rsp+20h] [rbp-98h] BYREF
char flag[112]; // [rsp+30h] [rbp-88h] BYREF
printf(::Format);
printf((char *)&Format_);
Stream = _acrt_iob_func(0);
fgets(flag, 100, Stream);
v4 = -1LL;
length = -1LL;
do
++length;
while ( flag[length] );
if ( length && v11[length + 15] == 10 )
{
n = length - 1;
if ( n >= 0x64 )
_report_securityfailure_(flag);
flag[n] = 0;
}
do
++v4;
while ( flag[v4] );
Str1 = (char *)baseEncode(flag, v4, v11);// 标准base64加密
v8 = strcmp(Str1, "bW9lY3Rme1kwdV9DNG5fRzAwZF9BdF9CNDVlNjQhIX0=");
Format = (char *)&unk_140003300;
if ( v8 )
Format = (char *)&byte_140003318;
printf(Format);
free(Str1);
return 0;
}
speed

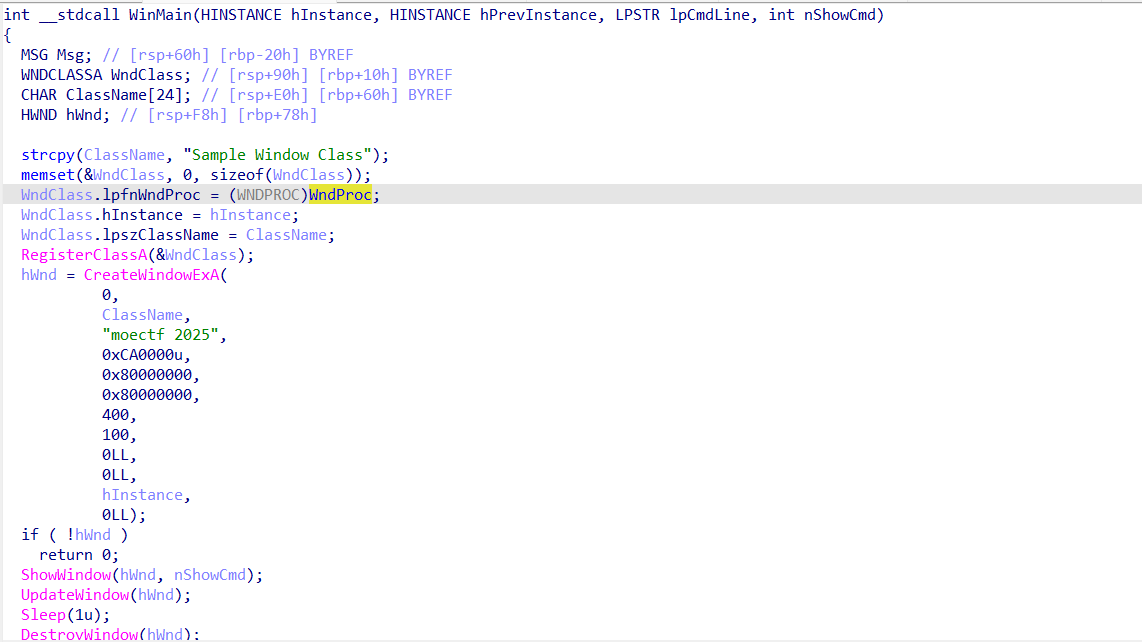

附件程序运行出现一道黑影，看不清。IDA分析main函数，发现使用了WNDCLASSA结构体（详细信息见：WNDCLASSA （winuser.h） - Win32 apps | Microsoft Learn），主要逻辑是创建窗口，关键部分是窗口结构体变量lpfnWndProc，它指向了窗口的逻辑（即代码中的WndProc函数）
分析WndProc函数发现，窗口似乎直接输出flag。于是下断点，动态调试
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72//WndProc函数
LRESULT __fastcall WndProc(HWND hWnd, UINT Msg, WPARAM wParam, LPARAM lParam)
{
tagPAINTSTRUCT Paint; // [rsp+30h] [rbp-50h] BYREF
char Destination[14]; // [rsp+80h] [rbp+0h] BYREF
__int16 v7; // [rsp+8Eh] [rbp+Eh]
__int64 v8; // [rsp+90h] [rbp+10h]
__int64 v9; // [rsp+98h] [rbp+18h]
__int64 v10; // [rsp+A0h] [rbp+20h]
__int64 v11; // [rsp+A8h] [rbp+28h]
__int64 v12; // [rsp+B0h] [rbp+30h]
__int64 v13; // [rsp+B8h] [rbp+38h]
__int64 v14; // [rsp+C0h] [rbp+40h]
__int64 v15; // [rsp+C8h] [rbp+48h]
__int64 v16; // [rsp+D0h] [rbp+50h]
__int64 v17; // [rsp+D8h] [rbp+58h]
__int64 v18; // [rsp+E0h] [rbp+60h]
__int64 v19; // [rsp+E8h] [rbp+68h]
__int64 v20; // [rsp+F0h] [rbp+70h]
__int64 v21; // [rsp+F8h] [rbp+78h]
struct tagRECT Rect; // [rsp+100h] [rbp+80h] BYREF
char mylittlepony[13]; // [rsp+113h] [rbp+93h] BYREF
char Source[8]; // [rsp+120h] [rbp+A0h] BYREF
__int64 v25; // [rsp+128h] [rbp+A8h]
_QWORD v26[2]; // [rsp+130h] [rbp+B0h]
int i; // [rsp+140h] [rbp+C0h]
int n12; // [rsp+144h] [rbp+C4h]
HDC hdc; // [rsp+148h] [rbp+C8h]
if ( Msg == 2 )
{
PostQuitMessage(0);
return 0LL;
}
else if ( Msg == 15 )
{
hdc = BeginPaint(hWnd, &Paint);
strcpy(Destination, "Your flag is ");
v7 = 0;
v8 = 0LL;
v9 = 0LL;
v10 = 0LL;
v11 = 0LL;
v12 = 0LL;
v13 = 0LL;
v14 = 0LL;
v15 = 0LL;
v16 = 0LL;
v17 = 0LL;
v18 = 0LL;
v19 = 0LL;
v20 = 0LL;
v21 = 0LL;
*(_QWORD *)Source = 0x7F1B3E885EF9160LL;
v25 = 0x2CD336BCB0464A89LL;
v26[0] = 0xEF5FC91642917EE1uLL;
*(_QWORD *)((char *)v26 + 6) = 0x739D40A4E356EF5FLL;
strcpy(mylittlepony, "mylittlepony");
n12 = 12;
i = strlen(Source);
RC4Crypt((unsigned __int8 *)Source, i, (const unsigned __int8 *)mylittlepony, 12);
strcat(Destination, Source);
GetClientRect(hWnd, &Rect);
DrawTextA(hdc, Destination, -1, &Rect, 0x40005u);
EndPaint(hWnd, &Paint);
return 0LL;
}
else
{
return DefWindowProcA(hWnd, Msg, wParam, lParam);
}

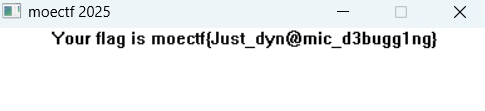

}动态调试结果如图：
ezpy
使用decompyle3反编译得到：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23def caesar_cipher_encrypt(text, shift):
result = []
for char in text:
if char.isalpha():
if char.islower():
new_char = chr((ord(char) - ord("a") + shift) % 26 + ord("a"))
elif char.isupper():
new_char = chr((ord(char) - ord("A") + shift) % 26 + ord("A"))
result.append(new_char)
else:
result.append(char)
return "".join(result)
user_input = input("please input your flag：")
a = 1
if a != 1:
plaintext = user_input
shift = 114514
encrypted_text = caesar_cipher_encrypt(plaintext, shift)
if encrypted_text == "wyomdp{I0e_Ux0G_zim}":
print("Correct!!!!")可以看出实现了一个凯撒加密，分析逻辑可以看出实际上是给每个字母移位了10（ascii码+10），所以给字母减10就ok了，可以基于源码进行微小改动得到解密脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16def caesar_cipher_decrypt(text, shift):
result = []
for char in text:
if char.isalpha():
if char.islower():
new_char = chr((ord(char) - ord("a") - shift) % 26 + ord("a"))#'+'改为-"
elif char.isupper():
new_char = chr((ord(char) - ord("A") - shift) % 26 + ord("A"))
result.append(new_char)
else:
result.append(char)
return "".join(result)
enc="wyomdp{I0e_Ux0G_zim}"
flag=caesar_cipher_decrypt(enc,114514)
print(flag)
catch

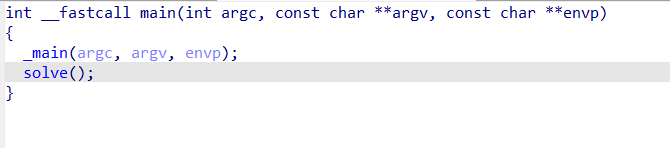

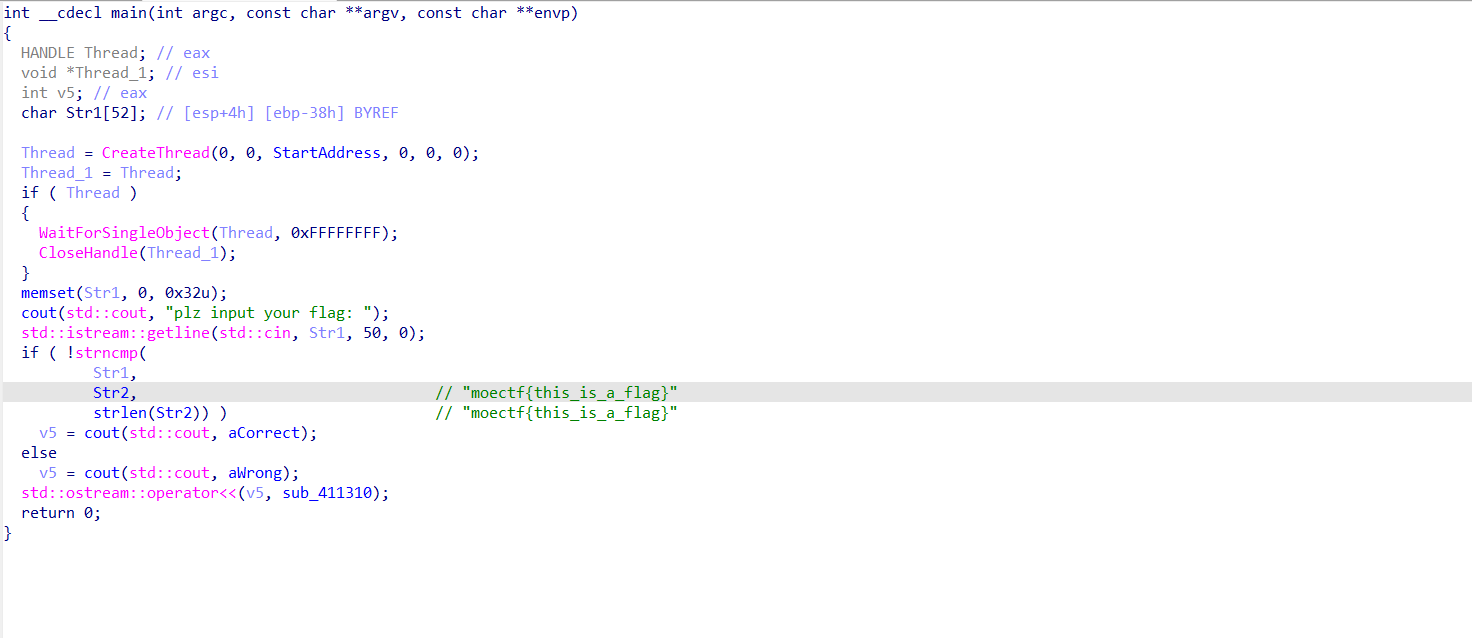

先看main函数反编译结果，发现只有简单的两个函数，其中solve函数有更复杂的逻辑：

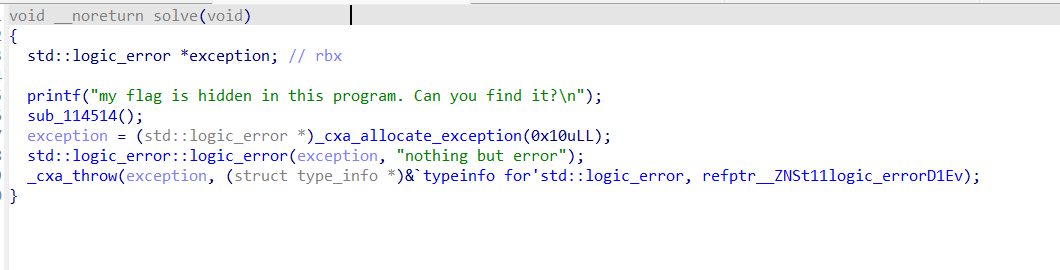

然而solve函数并不能看出什么有用的逻辑出来，sub_114514出现了flag字样，但是动调发现没有用处

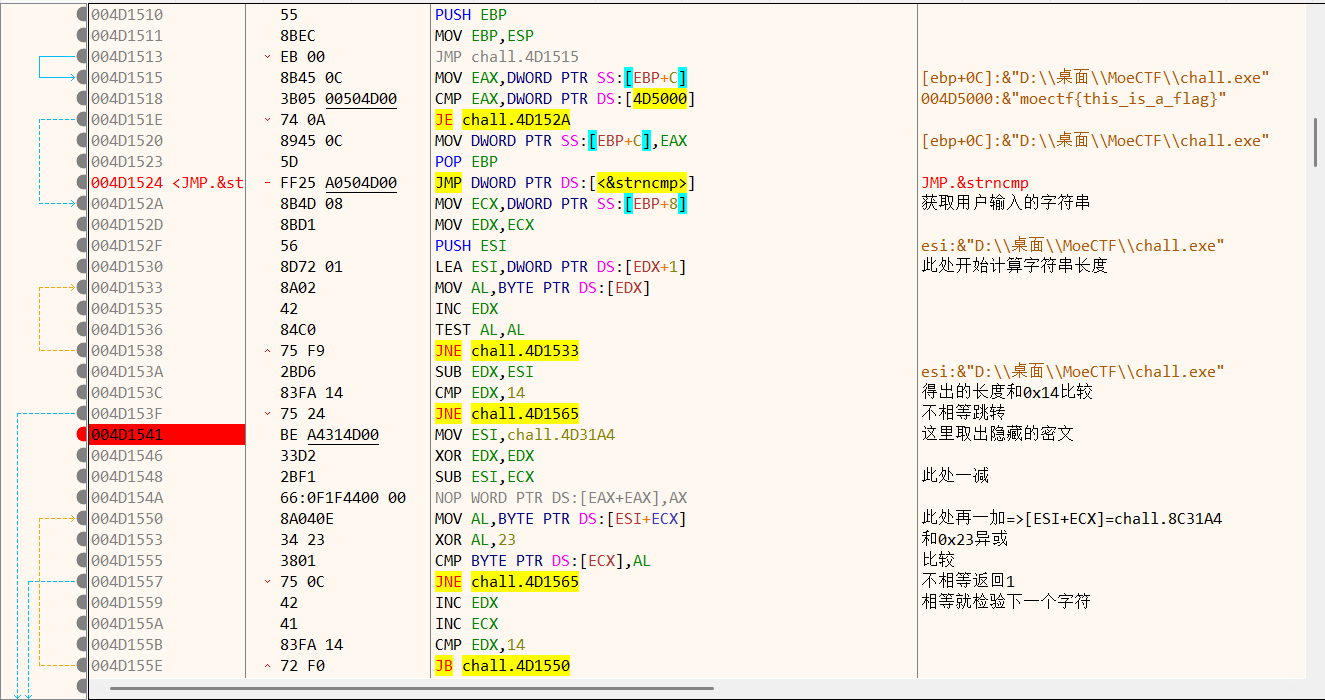

结合题目提示try catch不能被正确反编译，于是直接查看汇编代码。在汇编代码里看到一个类似flag格式的字符串，分析后续逻辑发现对这个字符串进行了处理，分析发现处理结果就是flag
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154.text:00000001400014D6 ; =============== S U B R O U T I N E =======================================
.text:00000001400014D6
.text:00000001400014D6 ; Attributes: bp-based frame fpd=10h
.text:00000001400014D6
.text:00000001400014D6 ; void __noreturn solve(void)
.text:00000001400014D6 public _Z5solvev
.text:00000001400014D6 _Z5solvev proc near ; CODE XREF: main+D↓p
.text:00000001400014D6 ; DATA XREF: .pdata:000000014002D078↓o ...
.text:00000001400014D6
.text:00000001400014D6 length = dword ptr -1Ch
.text:00000001400014D6 C = dword ptr -18h
.text:00000001400014D6 count = dword ptr -14h
.text:00000001400014D6
.text:00000001400014D6 ; __unwind { // __gxx_personality_seh0
.text:00000001400014D6 push rbp
.text:00000001400014D7 push rsi
.text:00000001400014D8 push rbx
.text:00000001400014D9 sub rsp, 30h
.text:00000001400014DD lea rbp, [rsp+30h]
.text:00000001400014E2 lea rax, aMyFlagIsHidden ; "my flag is hidden in this program. Can "...
.text:00000001400014E9 mov rcx, rax ; char *
.text:00000001400014EC call print
.text:00000001400014F1 ; try {
.text:00000001400014F1 call _Z10sub_114514v ; sub_114514(void)
.text:00000001400014F1 ; } // starts at 1400014F1
.text:00000001400014F6 mov ecx, 10h ; thrown_size
.text:00000001400014FB call __cxa_allocate_exception
.text:0000000140001500 mov rbx, rax
.text:0000000140001503 lea rax, aNothingButErro ; "nothing but error"
.text:000000014000150A mov rdx, rax ; char *
.text:000000014000150D mov rcx, rbx ; this
.text:0000000140001510 ; try {
.text:0000000140001510 call _ZNSt11logic_errorC1EPKc ; std::logic_error::logic_error(char const*)
.text:0000000140001510 ; } // starts at 140001510
.text:0000000140001515 mov r8, cs:_refptr__ZNSt11logic_errorD1Ev ; void (*)(void *)
.text:000000014000151C lea rax, _ZTISt11logic_error ; `typeinfo for'std::logic_error
.text:0000000140001523 mov rdx, rax ; lptinfo
.text:0000000140001526 mov rcx, rbx ; void *
.text:0000000140001529 ; try {
.text:0000000140001529 call __cxa_throw
.text:0000000140001529 ; } // starts at 140001529
.text:000000014000152E ; ---------------------------------------------------------------------------
.text:000000014000152E ; cleanup() // owned by 140001510
.text:000000014000152E mov rsi, rax
.text:0000000140001531 mov rcx, rbx ; void *
.text:0000000140001534 call __cxa_free_exception
.text:0000000140001539 mov rax, rsi
.text:000000014000153C jmp short $+2
.text:000000014000153E ; ---------------------------------------------------------------------------
.text:000000014000153E
.text:000000014000153E loc_14000153E: ; CODE XREF: solve(void)+66↑j
.text:000000014000153E ; catch(...) // owned by 1400014F1 ; void *
.text:000000014000153E ; catch(...) // owned by 140001529
.text:000000014000153E mov rcx, rax
.text:0000000140001541 call __cxa_begin_catch
.text:0000000140001546 lea rax, enc ; "zbrpgs{F4z3_Ge1px_jvgu_@sybjre_qrfhjn}"
.text:000000014000154D mov rcx, rax ; Str
.text:0000000140001550 call strlen
.text:0000000140001555 mov [rbp+10h+length], eax
.text:0000000140001558 mov [rbp+10h+count], 0
.text:000000014000155F jmp loc_14000160E
.text:0000000140001564 ; ---------------------------------------------------------------------------
.text:0000000140001564
.text:0000000140001564 loc_140001564: ; CODE XREF: solve(void)+13E↓j
.text:0000000140001564 mov eax, [rbp+10h+count]
.text:0000000140001567 cdqe
.text:0000000140001569 lea rdx, enc ; "zbrpgs{F4z3_Ge1px_jvgu_@sybjre_qrfhjn}"
.text:0000000140001570 movzx eax, byte ptr [rax+rdx]
.text:0000000140001574 movzx eax, al
.text:0000000140001577 mov [rbp+10h+C], eax
.text:000000014000157A mov eax, [rbp+10h+C]
.text:000000014000157D mov ecx, eax ; C
.text:000000014000157F mov rax, cs:__imp_islower
.text:0000000140001586 call rax ; __imp_islower ; 判断字母大小写
.text:0000000140001588 test eax, eax
.text:000000014000158A jz short loc_1400015B9 ; 大写字母跳转
.text:000000014000158C mov eax, [rbp+10h+C] ; enc[count]
.text:000000014000158F lea edx, [rax-54h] ; enc[count]-0x54
.text:0000000140001592 movsxd rax, edx
.text:0000000140001595 imul rax, 4EC4EC4Fh ; 从这里开始
.text:000000014000159C shr rax, 20h
.text:00000001400015A0 sar eax, 3
.text:00000001400015A3 mov ecx, edx
.text:00000001400015A5 sar ecx, 1Fh
.text:00000001400015A8 sub eax, ecx
.text:00000001400015AA imul ecx, eax, 1Ah
.text:00000001400015AD mov eax, edx
.text:00000001400015AF sub eax, ecx ; 到这里结束，实现的是除以26
.text:00000001400015B1 add eax, 61h ; 'a' ; 加上0x61
.text:00000001400015B4 mov [rbp+10h+C], eax
.text:00000001400015B7 jmp short loc_1400015F6
.text:00000001400015B9 ; ---------------------------------------------------------------------------
.text:00000001400015B9
.text:00000001400015B9 loc_1400015B9: ; CODE XREF: solve(void)+B4↑j
.text:00000001400015B9 mov eax, [rbp+10h+C]
.text:00000001400015BC mov ecx, eax ; C
.text:00000001400015BE mov rax, cs:__imp_isupper
.text:00000001400015C5 call rax ; __imp_isupper ; 判断字母大小写
.text:00000001400015C7 test eax, eax
.text:00000001400015C9 jz short loc_1400015F6 ; 非字母跳转
.text:00000001400015CB mov eax, [rbp+10h+C] ; enc[count]
.text:00000001400015CE lea edx, [rax-34h] ; enc[count]-0x34
.text:00000001400015D1 movsxd rax, edx
.text:00000001400015D4 imul rax, 4EC4EC4Fh ; 从这里开始
.text:00000001400015DB shr rax, 20h
.text:00000001400015DF sar eax, 3
.text:00000001400015E2 mov ecx, edx
.text:00000001400015E4 sar ecx, 1Fh
.text:00000001400015E7 sub eax, ecx
.text:00000001400015E9 imul ecx, eax, 1Ah
.text:00000001400015EC mov eax, edx
.text:00000001400015EE sub eax, ecx ; 到这里结束，实现的是除以26
.text:00000001400015F0 add eax, 41h ; 'A' ; 加上0x41
.text:00000001400015F3 mov [rbp+10h+C], eax
.text:00000001400015F6
.text:00000001400015F6 loc_1400015F6: ; CODE XREF: solve(void)+E1↑j
.text:00000001400015F6 ; solve(void)+F3↑j
.text:00000001400015F6 mov eax, [rbp+10h+C]
.text:00000001400015F9 mov ecx, eax
.text:00000001400015FB mov eax, [rbp+10h+count]
.text:00000001400015FE cdqe
.text:0000000140001600 lea rdx, enc ; "zbrpgs{F4z3_Ge1px_jvgu_@sybjre_qrfhjn}"
.text:0000000140001607 mov [rax+rdx], cl
.text:000000014000160A add [rbp+10h+count], 1
.text:000000014000160E
.text:000000014000160E loc_14000160E: ; CODE XREF: solve(void)+89↑j
.text:000000014000160E mov eax, [rbp+10h+count]
.text:0000000140001611 cmp eax, [rbp+10h+length]
.text:0000000140001614 jl loc_140001564
.text:000000014000161A lea rax, aSoYouDidnTCatc ; "so you didn't catch me?\n"
.text:0000000140001621 mov rcx, rax ; char *
.text:0000000140001624 ; try {
.text:0000000140001624 call print
.text:0000000140001624 ; } // starts at 140001624
.text:0000000140001629 call __cxa_end_catch
.text:000000014000162E jmp short loc_140001644
.text:0000000140001630 ; ---------------------------------------------------------------------------
.text:0000000140001630 ; cleanup() // owned by 140001624
.text:0000000140001630 mov rbx, rax
.text:0000000140001633 call __cxa_end_catch
.text:0000000140001638 mov rax, rbx
.text:000000014000163B mov rcx, rax ; gcc_exc
.text:000000014000163E call _Unwind_Resume
.text:000000014000163E ; ---------------------------------------------------------------------------
.text:0000000140001643 align 4
.text:0000000140001644
.text:0000000140001644 loc_140001644: ; CODE XREF: solve(void)+158↑j
.text:0000000140001644 add rsp, 30h
.text:0000000140001648 pop rbx
.text:0000000140001649 pop rsi
.text:000000014000164A pop rbp
.text:000000014000164B retn
.text:000000014000164B ; } // starts at 1400014D6
.text:000000014000164B _Z5solvev endp解密脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19def decode(s):
result = []
for char in s:
#小写字母
if 'a' <= char <= 'z':
new_char = chr((ord(char) - 0x54) % 26 + 0x61)
result.append(new_char)
#大写字母
elif 'A' <= char <= 'Z':
new_char = chr((ord(char) - 0x34) % 26 + 0x41)
result.append(new_char)
#非字母
else:
result.append(char)
return ''.join(result)
enc = "zbrpgs{F4z3_Ge1px_jvgu_@sybjre_qrfhjn}"
flag = decode(enc)
print(flag)
upx_revenge

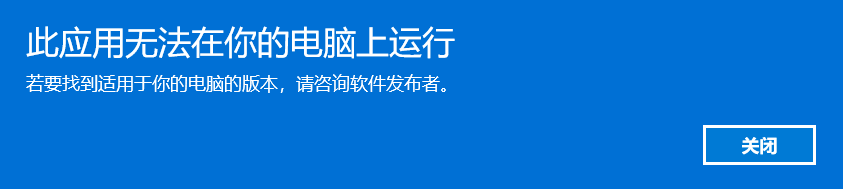

附件程序运行不了，如图：
题目提示upx特征段魔改，但是自己尝试后发现魔改特征段不会导致程序运行不了
后来琢磨了半天，拷打
(bushi了一下出题人，才发现这个程序缺了bytes（看了官方WriteUp，发现这确实是一个考点😭，我真傻，真的，我单知道upx魔改会改特征段数据，我不知道还可以删数据😭）

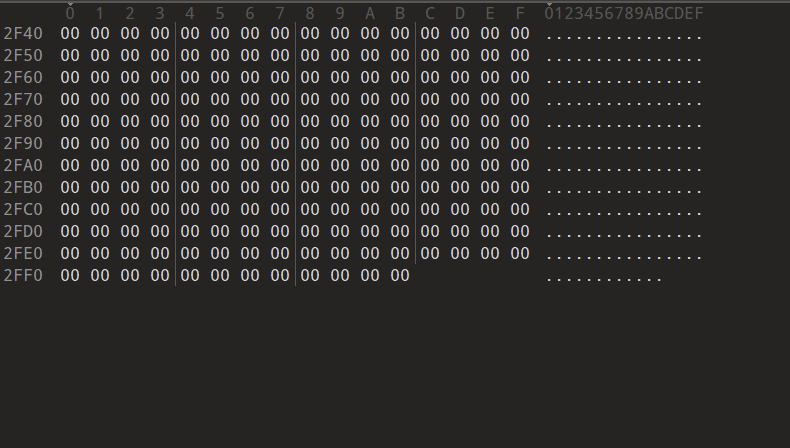

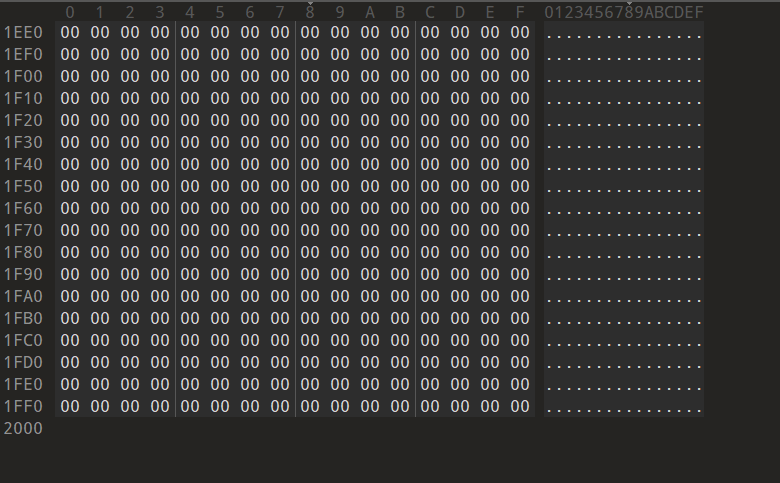

缺少的地方在upx特征段，可以发现upx1段开头的四个字节错位了，错位到upx特征段上了，所以要给特征段插入四个字节

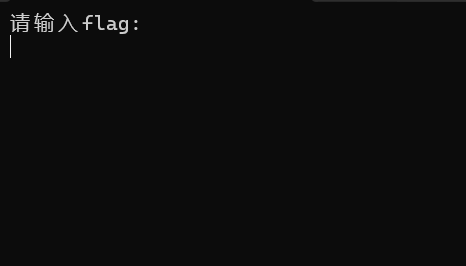

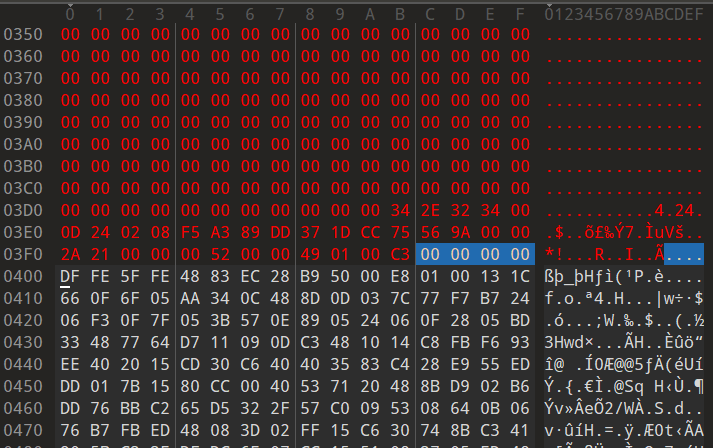

用010editor在49 01 00 C3后面按Ctrl+shift+I插入4bytes（默认填充为0），会发现程序可以运行了
采用手动脱壳的办法。具体操作可以参考week1_upx的解法或者看看Day9:壳与脱壳（一）和Day10:壳与脱壳（二）
（王婆卖瓜这一块，这里从找到OEP开始：
下断点F9运行到上图这个大跳，然后F7步入
RIP指向此处时，打开scylla进行转储和IAT重建修复转储。这里需要注意，IAT搜索出来的结果里有一个损坏的导入，需要把它删掉
脱壳后的_dump_SCY.exe文件就可以用IDA打开正常分析了

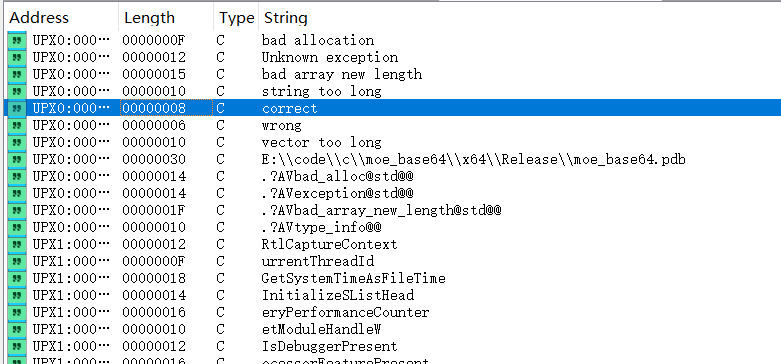

首先查看字符串表，可以发现可疑的的提示”correct”
跟踪correct可以找到main函数。下面是优化后的main函数和相关的函数
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192// Hidden C++ exception states: #wind=5
int __fastcall main(int argc, const char **argv, const char **envp)
{
__int64 v3; // rax
__int64 v4; // rdx
unsigned __int8 v5; // al
__int64 v6; // r8
void **v7; // rdx
void **v8; // rsi
size_t length; // rdi
void *v10; // rax
void *v11; // rcx
_QWORD *newBuffer; // rax
char *v13; // rbx
char *enc; // rax
char *v15; // rbx
void **encryptedFlag; // rcx
int v17; // eax
char *outString; // rdx
__int64 v19; // rax
void *v20; // rcx
void *v21; // rcx
void *v22; // rcx
void *v23; // rcx
void *CopiedFlag[2]; // [rsp+28h] [rbp-51h] BYREF
char *bufferEnd; // [rsp+38h] [rbp-41h]
void *flag[2]; // [rsp+40h] [rbp-39h] BYREF
__m128i si128; // [rsp+50h] [rbp-29h]
void *encodeResult[2]; // [rsp+60h] [rbp-19h] BYREF
size_t Size; // [rsp+70h] [rbp-9h]
unsigned __int64 v31; // [rsp+78h] [rbp-1h]
void *modifiedBaseTable[2]; // [rsp+80h] [rbp+7h] BYREF
__m128i v33; // [rsp+90h] [rbp+17h]
__int128 v34; // [rsp+A0h] [rbp+27h]
__int64 v35; // [rsp+B0h] [rbp+37h]
__int64 v36; // [rsp+B8h] [rbp+3Fh]
v3 = output(std::cout, pleaseEnterYourFlag);
std::istream::operator>>(v3, out_flush);
*flag = 0LL;
si128 = _mm_load_si128(&xmmword_7FF7420B44B0);
LOBYTE(flag[0]) = 0;
LOBYTE(v4) = 10;
v5 = std::ios::widen(&std::cin + *(std::cin + 4LL), v4);
input(std::cin, flag, v5);
v7 = flag;
if ( si128.m128i_i64[1] > 0xFuLL ) // si128.m128i_i64[1]是输入的flag的长度
v7 = flag[0];
v8 = flag;
if ( si128.m128i_i64[1] > 0xFuLL )
v8 = flag[0];
*CopiedFlag = 0LL;
bufferEnd = 0LL;
length = v7 + si128.m128i_i64[0] - v8;
if ( length )
{
if ( length > 0x7FFFFFFFFFFFFFFFLL )
lengthError();
if ( length < 0x1000 )
{
newBuffer = operator new(length);
}
else
{
if ( length + 39 < length )
sub_7FF7420B1170();
v10 = operator new(length + 39);
v11 = v10;
if ( !v10 )
LABEL_31:
invalid_parameter_noinfo_noreturn();
newBuffer = ((v10 + 39) & 0xFFFFFFFFFFFFFFE0uLL);
*(newBuffer - 1) = v11;
}
CopiedFlag[0] = newBuffer;
v13 = newBuffer + length;
bufferEnd = newBuffer + length;
memmove(newBuffer, v8, length);
CopiedFlag[1] = v13;
}
XORencrypt(modifiedBaseTable, v7, v6); // 魔改base64的编码表
baseEncode(encodeResult, CopiedFlag, modifiedBaseTable);// base64编码
v34 = 0LL;
enc = operator new(0x30uLL);
v15 = enc;
*&v34 = enc;
v35 = 44LL;
v36 = 47LL;
strcpy(enc, "lY7bW=\\ck?eyjX7]TZ\\}CVbh\\tOyTH6>jH7XmFifG]H7");
encryptedFlag = encodeResult;
if ( v31 > 0xF )
encryptedFlag = encodeResult[0];
if ( Size != 44 || (v17 = memcmp(encryptedFlag, enc, 0x2CuLL), outString = aCorrect, v17) )
outString = aWrong;
v19 = output(std::cout, outString);
std::istream::operator>>(v19, out_flush);
j_j_free(v15);
if ( v31 > 0xF )
{
v20 = encodeResult[0];
if ( v31 + 1 >= 0x1000 )
{
v20 = *(encodeResult[0] - 1);
if ( (encodeResult[0] - v20 - 8) > 0x1F )
invalid_parameter_noinfo_noreturn();
}
j_j_free(v20);
}
Size = 0LL;
v31 = 15LL;
LOBYTE(encodeResult[0]) = 0;
if ( v33.m128i_i64[1] > 0xFuLL )
{
v21 = modifiedBaseTable[0];
if ( (v33.m128i_i64[1] + 1) >= 0x1000 )
{
v21 = *(modifiedBaseTable[0] - 1);
if ( (modifiedBaseTable[0] - v21 - 8) > 0x1F )
invalid_parameter_noinfo_noreturn();
}
j_j_free(v21);
}
v33 = _mm_load_si128(&xmmword_7FF7420B44B0);
LOBYTE(modifiedBaseTable[0]) = 0;
v22 = CopiedFlag[0];
if ( CopiedFlag[0] )
{
if ( (bufferEnd - CopiedFlag[0]) >= 0x1000 )
{
v22 = *(CopiedFlag[0] - 1);
if ( (CopiedFlag[0] - v22 - 8) > 0x1F )
goto LABEL_31;
}
j_j_free(v22);
}
if ( si128.m128i_i64[1] > 0xFuLL )
{
v23 = flag[0];
if ( (si128.m128i_i64[1] + 1) >= 0x1000 )
{
v23 = *(flag[0] - 1);
if ( (flag[0] - v23 - 8) > 0x1F )
invalid_parameter_noinfo_noreturn();
}
j_j_free(v23);
}
return 0;
}
// Hidden C++ exception states: #wind=5
_QWORD *__fastcall XORencrypt(_QWORD *modifiedTable, __int64 a2, __int64 a3)
{
void **pTableStart; // rdx
void **pCurrentPos; // rdi
void **i; // rsi
char xored; // r9
unsigned __int64 cucrrentSize; // rcx
unsigned __int64 capacity; // rdx
_QWORD *Table; // rax
*modifiedTable = 0LL;
modifiedTable[2] = 0LL;
modifiedTable[3] = 15LL;
*modifiedTable = 0;
pTableStart = &oriTable;
pCurrentPos = &oriTable;
if ( *(&xmmword_7FF7420B6760 + 1) > 0xFuLL )
{
pCurrentPos = oriTable; // oriTable是原始的base64编码表
pTableStart = oriTable;
}
for ( i = (pTableStart + xmmword_7FF7420B6760); pCurrentPos != i; pCurrentPos = (pCurrentPos + 1) )
{
xored = *pCurrentPos ^ 0xE; // 遍历Table并异或0xE，创建一个魔改的编码表
cucrrentSize = modifiedTable[2];
capacity = modifiedTable[3];
if ( cucrrentSize >= capacity )
{
needExpand(modifiedTable, capacity, a3, xored);
}
else
{
modifiedTable[2] = cucrrentSize + 1; // 此处开始写入xor处理后的table字符
Table = modifiedTable;
if ( capacity > 0xF )
Table = *modifiedTable;
*(Table + cucrrentSize) = xored;
*(Table + cucrrentSize + 1) = 0;
}
}
return modifiedTable;
}可以看出逻辑就是先魔改base64的编码表，然后再用魔改的编码表对flag进行base64编码，最后和给定的密文比较。可以先对enc进行异或，然后再base64解码
1
2
3
4
5
6
7enc = "lY7bW=\\ck?eyjX7]TZ\\}CVbh\\tOyTH6>jH7XmFifG]H7"
data = ""
for char in enc:
data += chr(ord(char) ^ 0xE)
print(data)
#bW9lY3Rme1kwdV9SZTRsMXlfRzAwZF80dF9VcHghISF9
Two cups of tea
反编译的代码分析优化后大概是这样：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164//main函数部分
int __fastcall main(int argc, const char **argv, const char **envp)
{
__int64 n; // rbx
FILE *Stream; // rax
size_t length; // rax
__int64 v6; // rdx
__int64 count; // rax
unsigned __int64 tmp4key; // [rsp+20h] [rbp-E0h] BYREF
char key_2; // [rsp+28h] [rbp-D8h]
__int64 key_1; // [rsp+30h] [rbp-D0h] BYREF
int key_3; // [rsp+38h] [rbp-C8h]
int key_4; // [rsp+3Ch] [rbp-C4h]
_DWORD enc[10]; // [rsp+40h] [rbp-C0h]
_OWORD flag[2]; // [rsp+68h] [rbp-98h] BYREF
__int64 v16; // [rsp+88h] [rbp-78h]
char Buffer[16]; // [rsp+90h] [rbp-70h] BYREF
__int128 v18; // [rsp+A0h] [rbp-60h]
__int64 v19; // [rsp+B0h] [rbp-50h]
n = 0LL;
key_1 = 2LL;
key_2 = 0;
key_3 = 2;
key_4 = 5;
enc[0] = 0x5D624C34;
enc[1] = 0x8629FEAD;
enc[2] = 0x9D11379B;
enc[3] = 0xFCD53211;
enc[4] = 0x460F63CE;
enc[5] = 0xC5816E68;
enc[6] = 0xFE5300AD;
enc[7] = 0xA0015EE;
enc[8] = 0x9806DBBB;
enc[9] = 0xEF4A2648;
tmp4key = 0xD0FCC6A7B8941CAFuLL;
key_init(*&argc, &tmp4key, &key_1);// 这里初始化了key,不必理会具体实现，可以动调得到结果
printf(&pleaseEnterYourFlag);
Stream = _acrt_iob_func(0);
fgets(Buffer, 100, Stream);
length = strcspn(Buffer, "\n");// 获取flag的长度
if ( length >= 0x64 )
_report_securityfailure_();
Buffer[length] = 0;
flag[0] = *Buffer;
key_1 = tmp4key;
v16 = v19;
flag[1] = v18;
key_3 = 0x12345678;
key_4 = 0x9ABCDEF0;
modefiedTea(flag, v6, &key_1);// 魔改的tea，加密flag以便比对验证
count = -1LL;
do
++count;
while ( Buffer[count] );// 确认flag长度
if ( count == 40 )
{
while ( *(flag + n * 4) == enc[n] )// 比对验证
{
if ( ++n >= 10 )
{
printf(right);
return 0;
}
}
printf(wrong);
}
else
{
printf(Format_0);
}
return 0;
}
//魔改tea部分
__int64 __fastcall modefiedTea(unsigned int *flag, __int64 a2, __int64 key)
{
unsigned int flag_9; // r9d
int delta; // r11d
unsigned int flag_eight; // edx
unsigned int flag_1; // esi
unsigned int flag_2; // ebp
unsigned int flag_3; // r14d
unsigned int flag_4; // r15d
unsigned int flag_5; // r12d
unsigned int flag_6; // r13d
int flag_o; // ebx
unsigned int flag_7; // ecx
int key_0; // edi
int key_1; // ebx
__int64 key_3; // r10
int key_2; // r11d
int v18; // eax
bool Count; // zf
__int64 flag_seven; // rax
unsigned int flag_0; // [rsp+0h] [rbp-58h]
unsigned int flag_nine; // [rsp+4h] [rbp-54h]
int count; // [rsp+8h] [rbp-50h]
int delta_1; // [rsp+68h] [rbp+10h]
__int64 Key; // [rsp+70h] [rbp+18h]
unsigned int flag_8; // [rsp+78h] [rbp+20h]
Key = key;
flag_9 = flag[9];
delta = 0;
flag_eight = flag[8];
flag_1 = flag[1];
flag_2 = flag[2];
flag_3 = flag[3];
flag_4 = flag[4];
flag_5 = flag[5];
flag_6 = flag[6];
flag_o = *flag;
flag_7 = flag[7];
flag_8 = flag_eight;
flag_nine = flag_9;
count = 11;
while ( 1 )
{
delta_1 = delta - 1640531527;
key_0 = *(key + 4LL * (((delta - 1640531527) >> 2) & 3));
flag_0 = flag_o
+ ((((16 * flag_9) ^ (flag_1 >> 3)) + ((flag_9 >> 5) ^ (4 * flag_1))) ^ (((delta - 1640531527) ^ flag_1)
+ (key_0 ^ flag_9)));
key_1 = *(Key + 4 * (((delta - 1640531527) >> 2) & 3 ^ 1LL));
flag_1 += ((flag_0 ^ key_1) + ((delta - 1640531527) ^ flag_2)) ^ (((16 * flag_0) ^ (flag_2 >> 3))
+ ((flag_0 >> 5) ^ (4 * flag_2)));
key_3 = ((delta - 1640531527) >> 2) & 3 ^ 3LL;
key_2 = *(Key + 4 * (((delta - 1640531527) >> 2) & 3 ^ 2LL));
flag_2 += ((flag_1 ^ key_2) + (delta_1 ^ flag_3)) ^ (((16 * flag_1) ^ (flag_3 >> 3)) + ((flag_1 >> 5) ^ (4 * flag_3)));
flag_3 += ((delta_1 ^ flag_4) + (flag_2 ^ *(Key + 4 * key_3))) ^ (((16 * flag_2) ^ (flag_4 >> 3))
+ ((flag_2 >> 5) ^ (4 * flag_4)));
flag_4 += ((flag_3 ^ key_0) + (delta_1 ^ flag_5)) ^ (((16 * flag_3) ^ (flag_5 >> 3)) + ((flag_3 >> 5) ^ (4 * flag_5)));
flag_5 += ((flag_4 ^ key_1) + (delta_1 ^ flag_6)) ^ (((16 * flag_4) ^ (flag_6 >> 3)) + ((flag_4 >> 5) ^ (4 * flag_6)));
v18 = (flag_5 ^ key_2) + (delta_1 ^ flag_7);
delta = delta_1;
flag_6 += v18 ^ (((16 * flag_5) ^ (flag_7 >> 3)) + ((flag_5 >> 5) ^ (4 * flag_7)));
flag_7 += ((flag_6 ^ *(Key + 4 * key_3)) + (delta_1 ^ flag_8)) ^ (((16 * flag_6) ^ (flag_8 >> 3))
+ ((flag_6 >> 5) ^ (4 * flag_8)));
flag_8 += ((flag_7 ^ key_0) + (delta_1 ^ flag_nine)) ^ (((16 * flag_7) ^ (flag_nine >> 3))
+ ((flag_7 >> 5) ^ (4 * flag_nine)));
flag_9 = (((flag_8 ^ key_1) + (delta_1 ^ flag_0)) ^ (((16 * flag_8) ^ (flag_0 >> 3)) + ((flag_8 >> 5) ^ (4 * flag_0))))
+ flag_nine;
key = Key;
Count = count-- == 1;
flag_nine = flag_9;
if ( Count )
break;
flag_o = flag_0;
}
flag_seven = flag_7;
flag[1] = flag_1;
flag[2] = flag_2;
flag[3] = flag_3;
flag[4] = flag_4;
flag[5] = flag_5;
flag[6] = flag_6;
flag[7] = flag_7;
flag[8] = flag_8;
flag[9] = flag_9;
*flag = flag_0;
return flag_seven;
}由于加密主要依赖的是异或，只要复原出加密时的环境（相关变量），就可以再次加密实现复原。下图是AI给的加密逻辑分析。首先每轮加密的密钥不同，其次每个字符块的加密都依赖前一块和后一块。突破口：对于flag9而言，它的前一块和后一块都是经过本轮加密的，也就是说在最后一轮，flag9依赖的是最终密文的flag0和flag8，可以利用最终密文直接解密。解密出最后一轮的未加密flag9后，就可以往回解密flag8-flag0，就这样11轮解密回去。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39┌─────────────────────────────────────────────────────────────────────────┐
│ 修改版TEA加密（10块Feistel结构，11轮） │
└─────────────────────────────────────────────────────────────────────────┘
输入: flag[0]...flag[9] (10个32位字), key[0]...key[3] (128位密钥)
初始化:
delta = 0
count = 11
开始循环（11轮）:
delta_1 = delta - 0x61C88647 (无符号减法，1640531527的十六进制)
密钥调度:
k0 = key[(delta_1>>2) & 3]
k1 = key[((delta_1>>2) & 3) ^ 1]
k2 = key[((delta_1>>2) & 3) ^ 2]
k3 = key[((delta_1>>2) & 3) ^ 3]
加密链（每轮更新所有10个字，顺序依赖）:
flag0 += F(flag9, flag1, delta_1, k0)
flag1 += F(flag0, flag2, delta_1, k1)
flag2 += F(flag1, flag3, delta_1, k2)
flag3 += F(flag2, flag4, delta_1, k3)
flag4 += F(flag3, flag5, delta_1, k0)
flag5 += F(flag4, flag6, delta_1, k1)
flag6 += F(flag5, flag7, delta_1, k2)
flag7 += F(flag6, flag8, delta_1, k3)
flag8 += F(flag7, flag9, delta_1, k0)
flag9 += F(flag8, flag0, delta_1, k1)
其中 F(a, b, delta, k) =
((16*a) ^ (b>>3)) + ((a>>5) ^ (4*b))) ^ ( (delta ^ b) + (k ^ a) )
更新delta = delta_1
循环结束（count减至1）
输出: 加密后的flag[0]...flag[9]解密脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56#include <stdio.h>
#include <stdint.h>
void modefiedTea_decrypt(uint32_t* flag, uint32_t* key) {
int32_t deltas[11];
int32_t delta = 0;
for (int i = 0; i < 11; i++) {
delta -= 1640531527;
deltas[i] = delta;
}
for (int round = 10; round >= 0; round--) {
uint32_t delta_1 = deltas[round];
uint32_t k0 = key[((delta_1 >> 2) & 3)];
uint32_t k1 = key[((delta_1 >> 2) & 3) ^ 1];
uint32_t k2 = key[((delta_1 >> 2) & 3) ^ 2];
uint32_t k3 = key[((delta_1 >> 2) & 3) ^ 3];
flag[9] -= ((flag[8] ^ k1) + (delta_1 ^ flag[0])) ^ (((16 * flag[8]) ^ (flag[0] >> 3)) + ((flag[8] >> 5) ^ (4 * flag[0])));
flag[8] -= ((flag[7] ^ k0) + (delta_1 ^ flag[9])) ^ (((16 * flag[7]) ^ (flag[9] >> 3)) + ((flag[7] >> 5) ^ (4 * flag[9])));
flag[7] -= ((flag[6] ^ k3) + (delta_1 ^ flag[8])) ^ (((16 * flag[6]) ^ (flag[8] >> 3)) + ((flag[6] >> 5) ^ (4 * flag[8])));
flag[6] -= ((flag[5] ^ k2) + (delta_1 ^ flag[7])) ^ (((16 * flag[5]) ^ (flag[7] >> 3)) + ((flag[5] >> 5) ^ (4 * flag[7])));
flag[5] -= ((flag[4] ^ k1) + (delta_1 ^ flag[6])) ^ (((16 * flag[4]) ^ (flag[6] >> 3)) + ((flag[4] >> 5) ^ (4 * flag[6])));
flag[4] -= ((flag[3] ^ k0) + (delta_1 ^ flag[5])) ^ (((16 * flag[3]) ^ (flag[5] >> 3)) + ((flag[3] >> 5) ^ (4 * flag[5])));
flag[3] -= ((flag[2] ^ k3) + (delta_1 ^ flag[4])) ^ (((16 * flag[2]) ^ (flag[4] >> 3)) + ((flag[2] >> 5) ^ (4 * flag[4])));
flag[2] -= ((flag[1] ^ k2) + (delta_1 ^ flag[3])) ^ (((16 * flag[1]) ^ (flag[3] >> 3)) + ((flag[1] >> 5) ^ (4 * flag[3])));
flag[1] -= ((flag[0] ^ k1) + (delta_1 ^ flag[2])) ^ (((16 * flag[0]) ^ (flag[2] >> 3)) + ((flag[0] >> 5) ^ (4 * flag[2])));
flag[0] -= ((flag[9] ^ k0) + (delta_1 ^ flag[1])) ^ (((16 * flag[9]) ^ (flag[1] >> 3)) + ((flag[9] >> 5) ^ (4 * flag[1])));
}
}
int main() {
uint32_t enc[10] = {
0x5D624C34, 0x8629FEAD, 0x9D11379B, 0xFCD53211,
0x460F63CE, 0xC5816E68, 0xFE5300AD, 0x0A0015EE,
0x9806DBBB, 0xEF4A2648
};
uint32_t key[4] = {
0x63656F6D, 0x21216674, 0x12345678, 0x9ABCDEF0
};
modefiedTea_decrypt(enc, key);
unsigned char* flag_str = (unsigned char*)enc;
for (int i = 0; i < 40; i++) {
if (flag_str[i] >= 32 && flag_str[i] <= 126) {
printf("%c", flag_str[i]);
}
else {
printf("\\x%02X", flag_str[i]);
}
}
printf("\n");
return 0;
}
week3
have_fun
附件是一个Windows GUI程序，界面如图。工具栏的“交互”实现flag的验证。
main函数主要实现的是创建窗口，涉及到WNDCLASSEXW结构体（详细信息见：WNDCLASSEXW （winuser.h） - Win32 apps | Microsoft Learn）。其中，结构体变量lpfnWndProc涉及窗口过程的实现，所以flag验证的相关逻辑在lpfnWndProc指向的函数中查看（图中重命名为ToolBar）
ToolBar中，实现了工具栏三个选项的交互逻辑，其中，DialogBoxParamW实现的是”交互“选项（因为参数DialogFunc看着最复杂，最像flag验证逻辑）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46//ToolBar函数
LRESULT __fastcall ToolBar(HWND hWnd, UINT Msg, WPARAM wParam, LPARAM lParam)
{
HDC hdc; // rsi
HFONT FontW; // rdi
HGDIOBJ h; // rbx
tagPAINTSTRUCT Paint; // [rsp+70h] [rbp-88h] BYREF
switch ( Msg )
{
case 2u:
PostQuitMessage(0);
break;
case 0xFu:
hdc = BeginPaint(hWnd, &Paint);
SetTextColor(hdc, 0xFFu);
SetBkMode(hdc, 1);
FontW = CreateFontW(36, 0, 0, 0, 700, 0, 0, 0, 1u, 0, 0, 0, 0x20u, &pszFaceName);
h = SelectObject(hdc, FontW);
TextOutW(hdc, 500, 160, &String, 15);
TextOutW(hdc, 500, 200, &word_7FF6D7EA3350, 10);
SelectObject(hdc, h);
DeleteObject(FontW);
EndPaint(hWnd, &Paint);
break;
case 0x111u:
switch ( wParam )
{
case 0x68u:
DialogBoxParamW(hInstance, 0x67, hWnd, sub_7FF6D7EA1420, 0LL);
break;
case 0x69u:
DestroyWindow(hWnd);
break;
case 0x9C42u:
DialogBoxParamW(hInstance, 0x66, hWnd, DialogFunc, 0LL);//“交互”选项
break;
default:
return DefWindowProcW(hWnd, Msg, wParam, lParam);
}
break;
default:
return DefWindowProcW(hWnd, Msg, wParam, lParam);
}
return 0LL;
}DialogFunc函数：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96INT_PTR __fastcall DialogFunc(HWND hDlg, int a2, unsigned __int16 n1003)
{
HWND hDlg_1; // rbx
int v4; // edx
__int64 length; // rax
int n32_2; // r8d
__m128 si128; // xmm2
__int64 v8; // rdx
unsigned __int64 v9; // rcx
__m128 v10; // xmm0
__m128 v11; // xmm1
__m128 v12; // xmm0
__m128 v13; // xmm1
__int64 count; // rdx
unsigned __int16 *currentChar; // rdx
int currentEnc; // r8d
int judgeNumber; // r9d
const WCHAR *PrintText; // r8
_OWORD v20[2]; // [rsp+0h] [rbp-1D8h] BYREF
WCHAR flag[8]; // [rsp+20h] [rbp-1B8h] BYREF
_OWORD v22[12]; // [rsp+30h] [rbp-1A8h] BYREF
_WORD flag_xored[104]; // [rsp+F0h] [rbp-E8h] BYREF
hDlg_1 = hDlg;
v4 = a2 - 272;
if ( !v4 )
{
PrintText = &word_7FF6D7EA3368;
LABEL_22:
SetDlgItemTextW(hDlg, 1002, PrintText);
return 1LL;
}
if ( v4 != 1 )
return 0LL;
if ( (n1003 - 1) > 1u )
{
if ( n1003 == 1003 )
{
GetDlgItemTextW(hDlg, 1001, flag, 100);
length = -1LL;
do
++length;
while ( flag[length] );
n32_2 = 0;
if ( length >= 32 )// flag长度大于32的情况（实际上不能是这种情况）
{
si128 = _mm_load_si128(&xmmword_7FF6D7EA33F0);
v8 = 0LL;
v9 = 0LL;
do
{
v10 = _mm_loadu_si128(&flag[v9 / 2]);
n32_2 += 32;
v8 += 32LL;
v11 = _mm_loadu_si128(&v22[v9 / 0x10]);
v9 += 64LL;
v22[v9 / 0x10 + 8] = _mm_xor_ps(v10, si128);
v12 = _mm_loadu_si128(&v20[v9 / 0x10]);
v22[v9 / 0x10 + 9] = _mm_xor_ps(v11, si128);
v13 = _mm_loadu_si128(&v20[v9 / 0x10 + 1]);
v22[v9 / 0x10 + 10] = _mm_xor_ps(v12, si128);
v22[v9 / 0x10 + 11] = _mm_xor_ps(v13, si128);
}
while ( v8 < (length - (length & 31)) );
}
count = n32_2;// 上述情况应不成立，因此n32_2为0
if ( n32_2 < length )
{
do
{
flag_xored[count] = flag[count] ^ 0x2A;
++count;
}
while ( count < length );
}
flag_xored[length] = 0;
currentChar = flag_xored;
do
{
currentEnc = *(currentChar + &enc - flag_xored);// enc[currentChar-flag_xored]
judgeNumber = *currentChar - currentEnc;
if ( judgeNumber )
break;
++currentChar;
}
while ( currentEnc );
if ( judgeNumber || (PrintText = &right, length != 16) )// flag长度由此处得出
PrintText = &wrong;
hDlg = hDlg_1;
goto LABEL_22;
}
return 0LL;
}
EndDialog(hDlg, n1003);
return 1LL;
}逻辑很明显，遍历flag，每个字符异或0x2A，然后和enc比较。解密脚本：
1
2
3
4
5enc = [
0x0047, 0x0045, 0x004F, 0x0049, 0x005E, 0x004C, 0x0051, 0x0062, 0x006A, 0x005C, 0x001E, 0x0075, 0x004C, 0x007F, 0x0044, 0x0057
]
flag = ''.join(chr(b ^ 0x2A) for b in enc)
print(flag)
guess
附件程序是一个猜数字游戏，用IDA打开，通过字符串表的关键数据”You are right!\n”可以快速定位到main函数的位置
main函数F5反编译不了，sp value报错，说明有花指令。把栈指针勾选上，会发现栈帧突变的位置：
栈帧改变太多，明显不对，把sub rsp, rax给nop掉。然后可以发现函数末尾栈帧会有点问题：
把add rsp, 1428h也给nop掉，这样main函数基本上可以反编译了
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72//优化后的main函数
// bad sp value at call has been detected, the output may be wrong!
int __fastcall main(int argc, const char **argv, const char **envp)
{
bool v3; // dl
std::ostream *v4; // rax
unsigned int v5; // eax
_QWORD *v6; // rax
std::ostream *v8; // rax
__int64 v9; // rax
__int64 v10; // rbx
std::ostream *v11; // rax
std::ostream *v12; // rax
std::ostream *v13; // rax
std::ostream *v14; // rax
unsigned int n0x64; // [rsp+2Ch] [rbp-54h]
_BYTE v17[2512]; // [rsp+30h] [rbp-50h] BYREF
_BYTE v18[2512]; // [rsp+A00h] [rbp+980h] BYREF
_BYTE v19[32]; // [rsp+13D0h] [rbp+1350h] BYREF
_BYTE v20[40]; // [rsp+13F0h] [rbp+1370h] BYREF
unsigned int n0x64_1; // [rsp+1418h] [rbp+1398h]
int i; // [rsp+141Ch] [rbp+139Ch]
_main(argc, argv, envp);
std::ios_base::sync_with_stdio(0LL, v3);
std::ios::tie((char *)in + 16, 0LL);
cout(out, "Welcome to MoeCTF 2025!\n");
cout(out, "Let's play a game!\n");
cout(out, "I have a secret number between 0 and 99, and you can guess it 10 times.\n");
v4 = (std::ostream *)cout(out, "If you successly guessed it, I will give you the flag!");
endl(v4);
random_device((std::random_device *)v18);
v5 = random_operator(v18);
mersenne_twister_engine(v17, v5);
std::random_device::~random_device((std::random_device *)v18);
n0x64_1 = (unsigned int)mersenne_twister_engine_operator(v17) % 0x64;
for ( i = 0; i <= 9; ++i )
{
cout(out, "Please input your number: ");
std::ostream::flush(out);
v6 = (_QWORD *)cin(in);
if ( (unsigned __int8)std::ios::operator!((char *)v6 + *(_QWORD *)(*v6 - 24LL)) || n0x64 >= 0x64 )
{
v8 = (std::ostream *)cout(out, "Invalid input");
endl(v8);
std::ios::clear((char *)in + 16, 0LL);
v9 = std::numeric_limits<long long>::max();
std::istream::ignore(in, v9, 10);
}
else
{
if ( n0x64_1 == n0x64 )
{
cout(out, "You are right!\n");
v10 = cout(out, "The flag is moectf{");
hex_to_binary(v20, &enc[abi:cxx11]);
rc4_decrypt(v19, v20, &key[abi:cxx11]);
v11 = (std::ostream *)std::operator<<<char>(v10, v19);
v12 = (std::ostream *)cout(v11, "}.");
endl(v12);
std::string::~string(v19);
std::string::~string(v20);
break;
}
v13 = (std::ostream *)cout(out, "That's not right...");
endl(v13);
}
}
v14 = (std::ostream *)cout(out, "Thanks for your playing!");
endl(v14);
return 0;
}可以看出，main函数的逻辑是先获取一个数字输入，然后经过和随机数有关的各种操作来判断是否符合条件，符合条件就输出flag。既然可以直接输出flag，不妨就动调改变判断结果直接得到flag。找到和输出有关的判断逻辑的位置：
动调程序步过此处后，改一下ZF即可让程序跳到”You are right!\n”处获得flag输出。好在本题没有给动调挖坑，可以直接得到flag：
rusty_sudoku
rust语言的数独游戏。运行附件程序，提示逆向分析程序找到数独并求解。用IDA打开，结合AI辅助优化后main函数长这样：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474__int64 __fastcall rusty_sudoku::main(__int64 a1, __int64 a2, __int64 a3)
{
__int128 *md5_ctx_prt; // rdi
__int64 temp; // rdx
size_t cupy_size; // rdx
unsigned __int8 *input_end; // rcx
unsigned __int8 *trimmed_length; // rsi
unsigned __int8 *trimmed_start; // r9
unsigned __int8 *input_ptr; // r8
char is_whitespace; // r11
unsigned __int8 *current_ptr; // rbx
unsigned __int8 *trimmed_count; // rax
unsigned int codepoint; // r11d
int v14; // r9d
int temp_val1; // r14d
int temp_val2; // ebp
unsigned int high_byte; // ebx
__int64 alloc_result; // rbx
char is_whitespace2; // bl
unsigned __int8 *end_ptr; // r11
unsigned int codepoint2; // esi
char byte1; // bl
char byte2; // bp
int temp_val3; // ebp
int temp_val4; // ebx
unsigned int high_byte2; // ebx
size_t actual_size; // r15
__int64 alloc_size; // r14
__int64 allocated_mem; // rax
__int64 expected_char; // r9
__int64 input_data; // rdx
__int64 index; // rax
int user_char; // ecx
int v34; // edx
int temp_val5; // r8d
__int64 result; // rax
__int64 user_index; // rax
__int64 sudoku_index; // rdx
int user_codepointer; // r8d
int v40; // r9d
int temp_val6; // r11d
int temp_val7; // r10d
int v43; // r10d
int temp_val8; // ebp
int temp_val9; // r11d
__int64 temp_arg1; // rdx
__int64 temp_arg2; // rdx
__int64 temp_arg3; // rdx
_BYTE buf[88]; // [rsp+30h] [rbp-178h] BYREF
__int128 fmt_arg1; // [rsp+90h] [rbp-118h] BYREF
__int128 fmt_arg2; // [rsp+A0h] [rbp-108h]
__int128 fmt_arg3; // [rsp+B0h] [rbp-F8h]
__int128 fmt_arg4; // [rsp+C0h] [rbp-E8h]
__int128 fmt_arg5; // [rsp+D0h] [rbp-D8h]
__int64 fmt_arg6; // [rsp+E0h] [rbp-C8h]
_OWORD stdin_handle[5]; // [rsp+F0h] [rbp-B8h] BYREF
char board_data; // [rsp+140h] [rbp-68h]
_BYTE md5_hash[16]; // [rsp+150h] [rbp-58h] BYREF
*buf = &welcome; // "Welcome to MoeCTF 2025!\nPlease **find** my sudoku and fill it correctly.\nAnd then I will give you the flag.\nInput your answer in one line (without spaces).\nfor example, 854219763397865421261473985785126394649538172132947856926384517513792648478651239 represents:\n854|219|763\n397|865|421\n261|473|985\n-----------\n785|126|394\n649|538|172\n132|947|856\n-----------\n926|384|517\n513|792|648\n478|651|239\n\nYour answer:\n"
*&buf[8] = 1LL;
*&buf[16] = 8LL;
*&buf[24] = 0LL;
std::io::stdio::_print(a1, a2, a3, buf);
*buf = 0LL;
*&buf[8] = 1LL;
*&buf[16] = 0LL;
*&stdin_handle[0] = std::io::stdio::stdin();
md5_ctx_prt = stdin_handle;
if ( (std::io::stdio::Stdin::read_line(stdin_handle, a2, buf, stdin_handle) & 1) != 0 )
{
*&fmt_arg1 = temp;
core::result::unwrap_failed(stdin_handle, a2, 14, "Invalid input.src\\main.rs", &fmt_arg1, &off_7FF6BF752050);
}
cupy_size = *&buf[8];
input_end = (*&buf[8] + *&buf[16]);
if ( *&buf[16] )
{
trimmed_length = 0LL;
trimmed_start = 0LL;
input_ptr = *&buf[8];
while ( 1 )
{
current_ptr = input_ptr;
trimmed_count = trimmed_start;
codepoint = *input_ptr;
if ( (codepoint & 0x80u) != 0 )
{
v14 = codepoint & 0x1F;
temp_val1 = input_ptr[1] & 0x3F;
if ( codepoint <= 0xDFu )
{
input_ptr += 2;
codepoint = temp_val1 | (v14 << 6);
}
else
{
temp_val2 = (temp_val1 << 6) | input_ptr[2] & 0x3F;
if ( codepoint < 0xF0u )
{
input_ptr += 3;
codepoint = (v14 << 12) | temp_val2;
}
else
{
input_ptr += 4;
codepoint = ((codepoint & 7) << 18) | (temp_val2 << 6) | current_ptr[3] & 0x3F;
}
}
}
else
{
++input_ptr;
}
trimmed_start = &trimmed_count[input_ptr - current_ptr];
if ( codepoint - 9 >= 5 && codepoint != 32 )
{
if ( codepoint < 0x80 )
goto LABEL_27;
high_byte = codepoint >> 8;
if ( codepoint >> 8 > 0x1F )
{
if ( high_byte == 32 )
{
is_whitespace = *(core::unicode::unicode_data::white_space::WHITESPACE_MAP + codepoint) >> 1;
}
else
{
if ( high_byte != 48 )
goto LABEL_27;
is_whitespace = codepoint == 12288;
}
}
else if ( high_byte )
{
if ( high_byte != 22 )
goto LABEL_27;
is_whitespace = codepoint == 5760;
}
else
{
is_whitespace = *(core::unicode::unicode_data::white_space::WHITESPACE_MAP + codepoint);
}
if ( (is_whitespace & 1) == 0 )
goto LABEL_27;
}
if ( input_ptr == input_end )
{
alloc_result = 1LL;
goto LABEL_58;
}
}
}
trimmed_start = 0LL;
input_ptr = *&buf[8];
trimmed_count = 0LL;
LABEL_27:
if ( input_ptr == input_end )
goto LABEL_53;
while ( 1 )
{
end_ptr = input_end;
codepoint2 = *(input_end - 1);
if ( (codepoint2 & 0x80000000) != 0 )
{
byte1 = *(input_end - 2);
if ( byte1 >= -64 )
{
input_end -= 2;
temp_val4 = byte1 & 0x1F;
}
else
{
byte2 = *(input_end - 3);
if ( byte2 >= -64 )
{
input_end -= 3;
temp_val3 = byte2 & 0xF;
}
else
{
input_end -= 4;
temp_val3 = ((*(end_ptr - 4) & 7) << 6) | byte2 & 0x3F;
}
temp_val4 = (temp_val3 << 6) | byte1 & 0x3F;
}
codepoint2 = (temp_val4 << 6) | codepoint2 & 0x3F;
if ( codepoint2 - 9 < 5 )
goto LABEL_31;
}
else
{
--input_end;
if ( codepoint2 - 9 < 5 )
goto LABEL_31;
}
if ( codepoint2 == 32 )
goto LABEL_31;
if ( codepoint2 < 0x80 )
break;
high_byte2 = codepoint2 >> 8;
if ( codepoint2 >> 8 <= 0x1F )
{
if ( high_byte2 )
{
if ( high_byte2 != 22 )
break;
is_whitespace2 = codepoint2 == 5760;
}
else
{
is_whitespace2 = *(core::unicode::unicode_data::white_space::WHITESPACE_MAP + codepoint2);
}
goto LABEL_30;
}
if ( high_byte2 == 32 )
{
is_whitespace2 = *(core::unicode::unicode_data::white_space::WHITESPACE_MAP + codepoint2) >> 1;
goto LABEL_30;
}
if ( high_byte2 != 48 )
break;
is_whitespace2 = codepoint2 == 12288;
LABEL_30:
if ( (is_whitespace2 & 1) == 0 )
break;
LABEL_31:
if ( input_ptr == input_end )
goto LABEL_53;
}
trimmed_start = &end_ptr[trimmed_start - input_ptr];
LABEL_53:
trimmed_length = (trimmed_start - trimmed_count);
if ( trimmed_start - trimmed_count < 0 )
{
alloc_size = 0LL;
goto LABEL_110;
}
cupy_size = &trimmed_count[*&buf[8]];
if ( trimmed_start == trimmed_count )
{
alloc_result = 1LL;
trimmed_length = 0LL;
goto LABEL_58;
}
actual_size = &trimmed_count[*&buf[8]];
RNvCs73fAdSrgOJL_7___rustc35___rust_no_alloc_shim_is_unstable_v2(stdin_handle, trimmed_length);
alloc_size = 1LL;
allocated_mem = __rustc::__rust_alloc(stdin_handle, trimmed_length, 1LL, trimmed_length);
if ( !allocated_mem )
LABEL_110:
alloc::raw_vec::handle_error(stdin_handle, trimmed_length, trimmed_length, alloc_size, &off_7FF6BF7521D8);// "/rustc/29483883eed69d5fb4db01964cdf2af4d86e9cb2\\library\\alloc\\src\\slice.rs"
alloc_result = allocated_mem;
cupy_size = actual_size;
LABEL_58:
memcpy(stdin_handle, trimmed_length, cupy_size);
input_data = *buf;
if ( *buf )
__rustc::__rust_dealloc(stdin_handle, trimmed_length, *buf, *&buf[8], 1LL);
if ( trimmed_length == 81 )
{
index = 0LL;
while ( index != 81 )
{
user_char = *(alloc_result + index);
if ( (user_char & 0x80u) == 0 )
{
++index;
}
else
{
v34 = user_char & 0x1F;
expected_char = *(alloc_result + index + 1) & 0x3F;
if ( user_char <= 0xDFu )
{
index += 2LL;
input_data = expected_char | (v34 << 6);
user_char = input_data;
}
else
{
expected_char = (expected_char << 6);
temp_val5 = expected_char | *(alloc_result + index + 2) & 0x3F;
if ( user_char < 0xF0u )
{
index += 3LL;
input_data = (v34 << 12);
user_char = input_data | temp_val5;
}
else
{
input_data = (user_char & 7) << 18;
user_char = input_data | (temp_val5 << 6) | *(alloc_result + index + 3) & 0x3F;
if ( user_char == 1114112 )
break;
index += 4LL;
}
}
}
if ( (user_char - 58) < 0xFFFFFFF6 )
goto LABEL_72;
}
user_index = 0LL;
sudoku_index = 0LL;
while ( user_index != 81 )
{
user_codepointer = *(alloc_result + user_index);
if ( (user_codepointer & 0x80u) != 0 )
{
v40 = user_codepointer & 0x1F;
temp_val6 = *(alloc_result + user_index + 1) & 0x3F;
if ( user_codepointer <= 0xDFu )
{
user_index += 2LL;
expected_char = temp_val6 | (v40 << 6);
user_codepointer = expected_char;
if ( sudoku_index == 81 )
break;
}
else
{
temp_val7 = (temp_val6 << 6) | *(alloc_result + user_index + 2) & 0x3F;
if ( user_codepointer < 0xF0u )
{
user_index += 3LL;
expected_char = (v40 << 12);
user_codepointer = expected_char | temp_val7;
if ( sudoku_index == 81 )
break;
}
else
{
expected_char = (user_codepointer & 7) << 18;
user_codepointer = expected_char | (temp_val7 << 6) | *(alloc_result + user_index + 3) & 0x3F;
if ( user_codepointer == 1114112 )
break;
user_index += 4LL;
if ( sudoku_index == 81 )
break;
}
}
}
else
{
++user_index;
if ( sudoku_index == 81 )
break;
}
expected_char = sudoku[sudoku_index];
if ( (expected_char & 0x80u) != 0LL )
{
v43 = expected_char & 0x1F;
temp_val8 = sudoku[sudoku_index + 1] & 0x3F;
if ( expected_char <= 0xDFu )
{
sudoku_index += 2LL;
expected_char = temp_val8 | (v43 << 6);
if ( user_codepointer == 1114112 )
break;
}
else
{
temp_val9 = (temp_val8 << 6) | sudoku[sudoku_index + 2] & 0x3F;
if ( expected_char < 0xF0u )
{
sudoku_index += 3LL;
expected_char = (v43 << 12) | temp_val9;
if ( user_codepointer == 1114112 )
break;
}
else
{
expected_char = ((expected_char & 7) << 18) | (temp_val9 << 6) | sudoku[sudoku_index + 3] & 0x3Fu;
if ( expected_char == 1114112 )
break;
sudoku_index += 4LL;
if ( user_codepointer == 1114112 )
break;
}
}
}
else
{
++sudoku_index;
if ( user_codepointer == 1114112 )
break;
}
if ( expected_char != 46 && user_codepointer != expected_char )
{
*&stdin_handle[0] = aYouShouldNotCh;
*(&stdin_handle[0] + 1) = 32LL;
*&fmt_arg1 = stdin_handle;
*(&fmt_arg1 + 1) = <&T_as_core::fmt::Display>::fmt;
*buf = &unk_7FF6BF7524E0;
*&buf[8] = 2LL;
*&buf[32] = 0LL;
*&buf[16] = &fmt_arg1;
*&buf[24] = 1LL;
result = std::io::stdio::_print(stdin_handle, 81LL, sudoku_index, buf);
goto LABEL_73;
}
}
sudoku::board::sudoku::Sudoku::from_str_line(stdin_handle, 81LL, alloc_result, buf, 81LL, expected_char);
if ( buf[0] == 1 )
{
*&fmt_arg1 = *&buf[4];
core::result::unwrap_failed(
stdin_handle,
81,
43,
"called `Result::unwrap()` on an `Err` value",
&fmt_arg1,
&unk_7FF6BF752070);
}
board_data = buf[81];
stdin_handle[4] = *&buf[65];
stdin_handle[3] = *&buf[49];
stdin_handle[2] = *&buf[33];
stdin_handle[1] = *&buf[17];
stdin_handle[0] = *&buf[1];
if ( sudoku::board::sudoku::Sudoku::is_solved(stdin_handle, 81LL, temp_arg1, stdin_handle) )
{
*buf = &off_7FF6BF752490; // "Congratulation!\n"
*&buf[8] = 1LL;
*&buf[16] = 8LL;
*&buf[24] = 0LL;
std::io::stdio::_print(stdin_handle, 81LL, temp_arg2, buf);
fmt_arg4 = 0LL;
fmt_arg3 = 0LL;
fmt_arg2 = 0LL;
fmt_arg1 = 0LL;
fmt_arg6 = 0LL;
fmt_arg5 = ::fmt_arg5;
md5_ctx_prt = &fmt_arg1;
md5::consume(&fmt_arg1, 81LL, alloc_result, &fmt_arg1, 81LL);
*&buf[80] = fmt_arg6;
*&buf[64] = fmt_arg5;
*&buf[48] = fmt_arg4;
*&buf[32] = fmt_arg3;
*&buf[16] = fmt_arg2;
*buf = fmt_arg1;
md5::Context::finalize(&fmt_arg1, 81LL, buf, md5_hash);
*&fmt_arg1 = md5_hash;
*(&fmt_arg1 + 1) = <md5::Digest_as_core::fmt::LowerHex>::fmt;
*buf = &YourFlagIs; // "Your flag is moectf{"
*&buf[8] = 2LL;
*&buf[32] = 0LL;
*&buf[16] = &fmt_arg1;
*&buf[24] = 1LL;
result = std::io::stdio::_print(&fmt_arg1, 81LL, temp_arg3, buf);
}
else
{
*buf = &TryAgain; // "try again~\n"
*&buf[8] = 1LL;
*&buf[16] = 8LL;
*&buf[24] = 0LL;
result = std::io::stdio::_print(stdin_handle, 81LL, temp_arg2, buf);
}
}
else
{
LABEL_72:
*buf = &Invalid; // "Invalid Solution.\n"
*&buf[8] = 1LL;
*&buf[16] = 8LL;
*&buf[24] = 0LL;
result = std::io::stdio::_print(stdin_handle, trimmed_length, input_data, buf);
}
LABEL_73:
if ( trimmed_length )
return __rustc::__rust_dealloc(md5_ctx_prt, trimmed_length, trimmed_length, alloc_result, 1LL);
return result;
}rust逆向的伪代码不好分析，但是作为数独游戏，只需要找到数独就可以了，可以shift+F12在字符串表窗口找到可疑的数据：
结合伪代码，可以分析出程序接受用户输入的已求解的数独后会进行检验，若数独正确且求解成功，会输出flag，flag是md5加密后的数独。所以直接利用程序得到flag即可。网上找一个数独求解工具求解：数独求解器 - 免费在线数独方案解题工具（建议不要直接把数独复制给AI求解，因为AI会乱改数据，笔者卡在求解这一步好久😅）
IDA动态调试（直接运行程序输入正确数独貌似会闪退），把解出来的数独按提示的顺序输入，就可以得到flag：
week4
ezandroid
附件apk用JEB打开，发现逻辑主要是将输入的文本base64加密后进行比较
cyberchef一把梭
ezandroid.pro
附件apk用JEB打开，可以发现使用了一个从native层ezandroidpro库载入的函数check，由check判断输入是否正确
把apk解压，在IDA中打开lib/armeabi-v7a/libezandroidpro.so，在Exports界面找到Java_com_example_ezandroidpro_MainActivity_check函数，即apk载入的check函数
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99bool __fastcall Java_com_example_ezandroidpro_MainActivity_check(int JENV, int a2, int a3)
{
_BOOL4 ret; // r5
const char *flag; // r0
const char *src; // r4
size_t length; // r0
size_t n; // r5
char *dest; // r9
unsigned int v11; // r10
char *str; // r4
int n96; // r2
int v14; // r0
unsigned __int8 *v15; // r2
int v16; // r1
char *_str; // r3
void *s1_1; // r6
unsigned __int8 v20; // [sp+4h] [bp-44h] BYREF
_BYTE v21[7]; // [sp+5h] [bp-43h] BYREF
void *s1; // [sp+Ch] [bp-3Ch]
_DWORD v23[2]; // [sp+10h] [bp-38h] BYREF
void *key; // [sp+18h] [bp-30h]
_DWORD v25[2]; // [sp+1Ch] [bp-2Ch] BYREF
void *dest_1; // [sp+24h] [bp-24h]
ret = 0;
flag = (const char *)(*(int (__fastcall **)(int, int, _DWORD))(*(_DWORD *)JENV + 676))(JENV, a3, 0);
if ( !flag )
return ret;
src = flag;
length = strlen(flag);
if ( length >= 0xFFFFFFF0 )
std::__basic_string_common<true>::__throw_length_error(v25);
n = length;
if ( length >= 0xB )
{
v11 = (length + 16) & 0xFFFFFFF0;
dest = (char *)operator new(v11);
v25[1] = n;
dest_1 = dest;
v25[0] = v11 + 1;
goto LABEL_7;
}
LOBYTE(v25[0]) = 2 * length;
dest = (char *)v25 + 1;
if ( length )
LABEL_7:
j_memcpy(dest, src, n);
dest[n] = 0;
(*(void (__fastcall **)(int, int, const char *))(*(_DWORD *)JENV + 680))(JENV, a3, src);
key = (void *)operator new(0x20u);
strcpy((char *)key, "moectf2025!!!!!!");
v23[1] = 16;
v23[0] = 33;
str = (char *)operator new(0x70u);
strcpy(str, "4EEB1EEF2914D79BFA8C5006332097ED2EF06C4A59CAE31C827A08D45CC649C0B971BF2EFBCB160E531A646DF7A6AC0B");
sm4Encrypt((int)&v20, (int)v25, (int)v23);
n96 = *(_DWORD *)&v21[3];
v14 = v20 & 1;
if ( !v14 )
n96 = v20 >> 1;
if ( n96 == 96 )
{
if ( v14 )
{
s1_1 = s1;
ret = memcmp(s1, str, 0x60u) == 0;
goto LABEL_20;
}
v15 = v21;
v16 = v20 >> 1;
_str = str;
do
{
ret = *v15 == (unsigned __int8)*_str;
if ( *v15 != (unsigned __int8)*_str )
break;
++_str;
++v15;
--v16;
}
while ( v16 );
}
else
{
ret = 0;
}
if ( v14 )
{
s1_1 = s1;
LABEL_20:
operator delete(s1_1);
}
operator delete(str);
if ( LOBYTE(v23[0]) << 31 )
operator delete(key);
if ( LOBYTE(v25[0]) << 31 )
operator delete(dest_1);
return ret;
}可以看到，check函数使用了sm4加密，密钥可能是“moectf2025!!!!!!”，还需要知道加密模式。借助AI分析具体加密函数知道采用ECB加密模式，cyberchef一把梭：
A simple program
附件程序main函数反编译出来大概是这样：
但是Str2这个像模像样的flag是假的，提交会显示错误。结合题目提示，flag应该藏在其他地方。
IDA看不出有什么套路在里面，但是在X32Dbg，strncmp是可以点进去的（在IDA中，strncmp是粉色的导入函数，点击函数没有详细内容），点进去会发现，里面还有一个strncmp
加上注释：
所以真正的检验逻辑在strncmp里，程序从chall.4D31A4取出真正的密文，然后把输入的flag进行异或处理再比较。在转储中跟随4D31A4可以获得密文：
解密脚本：
1
2
3
4
5enc=[0x4E, 0x4C, 0x46, 0x40, 0x57, 0x45, 0x58, 0x7A, 0x13, 0x56, 0x7C, 0x73, 0x17, 0x50, 0x50, 0x66, 0x47, 0x02, 0x02, 0x5E]
flag=""
for i in enc:
flag+=chr(i^0x23)
print(flag)
week5
2048_master_re
附件程序是一个2048小游戏，通过方向键来操作数字整体移动。根据游戏窗口可以推测这也是一个GUI程序。
用IDA打开附件程序，shift+F12可以在字符串窗口看见一些蛛丝马迹（因为是MFC GUI程序，也可以直接找WinMain函数，然后再从中找出和flag检验有关的逻辑）：
跟踪flag.txt可以发现一个疑似的关键函数：
通过粗略分析可以推测程序从flag.txt里读取数据，然后进行检验。但是此处没有直接的和flag相关的提示，跟踪到上级函数看看。选中函数名按X查找交叉引用，跳转到上一级函数：
出题人根据可疑函数的返回值设置了提示，看来flag检验逻辑在此没错了。回到可疑函数，可以看到函数后半部分是对Block的检验，所以推测sub_401A81是一个加密函数。跟踪进去可以找到一个魔改xxtea函数和一个疑似数据格式转换的函数。这是优化后的样子：
到这里大概掌握了一些信息了。但还是要完整分析一下程序的整体逻辑，继续找上级函数，回溯到WinMain函数。下面是沿着正向调用逻辑的分析：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352int __stdcall WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nShowCmd)
{
MSG Msg; // [rsp+60h] [rbp-90h] BYREF
WNDCLASSEXA v6; // [rsp+90h] [rbp-60h] BYREF
memset(&v6, 0, sizeof(v6));
v6.cbSize = 80;
v6.lpfnWndProc = check_2048; // 游戏的检验逻辑
v6.hInstance = hInstance;
v6.hCursor = LoadCursorA(0LL, 0x7F00);
v6.hbrBackground = 5;
v6.lpszClassName = "WindowClass";
v6.hIcon = LoadIconA(0LL, 0x7F00);
v6.hIconSm = LoadIconA(0LL, 0x7F00);
if ( RegisterClassExA(&v6) )
{
if ( CreateWindowExA(
0x200u,
"WindowClass",
"2048",
0x10CF0000u,
0x80000000,
0x80000000,
640,
480,
0LL,
0LL,
hInstance,
0LL) )
{
while ( GetMessageA(&Msg, 0LL, 0, 0) > 0 )
{
TranslateMessage(&Msg);
DispatchMessageA(&Msg);
}
return Msg.wParam;
}
else
{
MessageBoxA(0LL, "Window Creation Failed!", "Error!", 0x30u);
return 0;
}
}
else
{
MessageBoxA(0LL, "Window Registration Failed!", "Error!", 0x30u);
return 0;
}
}
//游戏检验函数
LRESULT __fastcall check_2048(HWND hWnd, UINT n20, WPARAM wParam, LPARAM lParam)
{
unsigned int v4; // eax
tagPAINTSTRUCT Paint; // [rsp+50h] [rbp-30h] BYREF
struct tagRECT Rect; // [rsp+230h] [rbp+1B0h] BYREF
HGDIOBJ h; // [rsp+248h] [rbp+1C8h]
HDC hdcSrc; // [rsp+250h] [rbp+1D0h]
HDC hdc; // [rsp+258h] [rbp+1D8h]
LONG dwNewLong; // [rsp+264h] [rbp+1E4h]
HMENU SystemMenu; // [rsp+268h] [rbp+1E8h]
int i2; // [rsp+274h] [rbp+1F4h]
int i1; // [rsp+278h] [rbp+1F8h]
int nn; // [rsp+27Ch] [rbp+1FCh]
int mm; // [rsp+280h] [rbp+200h]
int kk; // [rsp+284h] [rbp+204h]
int v18; // [rsp+288h] [rbp+208h]
int jj; // [rsp+28Ch] [rbp+20Ch]
int i14; // [rsp+290h] [rbp+210h]
int i13; // [rsp+294h] [rbp+214h]
int i12; // [rsp+298h] [rbp+218h]
int i11; // [rsp+29Ch] [rbp+21Ch]
int i10; // [rsp+2A0h] [rbp+220h]
int v25; // [rsp+2A4h] [rbp+224h]
int i9; // [rsp+2A8h] [rbp+228h]
int i8; // [rsp+2ACh] [rbp+22Ch]
int i7; // [rsp+2B0h] [rbp+230h]
int i6; // [rsp+2B4h] [rbp+234h]
int i5; // [rsp+2B8h] [rbp+238h]
int i4; // [rsp+2BCh] [rbp+23Ch]
int v32; // [rsp+2C0h] [rbp+240h]
int i3; // [rsp+2C4h] [rbp+244h]
int ii; // [rsp+2C8h] [rbp+248h]
int n; // [rsp+2CCh] [rbp+24Ch]
int m; // [rsp+2D0h] [rbp+250h]
int k; // [rsp+2D4h] [rbp+254h]
int j; // [rsp+2D8h] [rbp+258h]
int v39; // [rsp+2DCh] [rbp+25Ch]
int i; // [rsp+2E0h] [rbp+260h]
char v41; // [rsp+2E7h] [rbp+267h]
int i16; // [rsp+2E8h] [rbp+268h]
int i15; // [rsp+2ECh] [rbp+26Ch]
if ( n20 == 15 ) // 下面开始是一大串的检验操作
{
hdc = BeginPaint(hWnd, &Paint);
hdcSrc = CreateCompatibleDC(hdc);
GetClientRect(hWnd, &Rect);
h = CreateCompatibleBitmap(hdc, Rect.right, Rect.bottom);
SelectObject(hdcSrc, h);
sub_4022AF(hdcSrc);
BitBlt(hdc, 0, 0, Rect.right, Rect.bottom, hdcSrc, 0, 0, 0xCC0020u);
DeleteObject(h);
DeleteDC(hdcSrc);
EndPaint(hWnd, &Paint);
}
else if ( n20 > 0xF )
{
//...此处省略
}
else if ( n20 == 1 )
{
SystemMenu = GetSystemMenu(hWnd, 0);
dwNewLong = GetWindowLongA(hWnd, -16) & 0xFFF8FFFF;
SetWindowLongA(hWnd, -16, dwNewLong);
SetWindowPos(hWnd, 0LL, 0, 0, 0, 0, 3u);
ShowWindow(hWnd, 1);
v4 = time64(0LL);
srand(v4);
hThread = CreateThread(0LL, 0LL, StartAddress, 0LL, 0, 0LL);
CreateThread(0LL, 0LL, check_flag, 0LL, 0, 0LL);// 这里创建了线程，而flag的检验函数就在这个线程里
if ( sub_401DBF("layout.dat") )
{
sub_4645D0(&Paint, "layout.dat", 8);
for ( i15 = 1; i15 <= 4; ++i15 )
{
for ( i16 = 1; i16 <= 4; ++i16 )
sub_453880(&Paint, &dword_4B6040[5 * i15 + i16]);
}
sub_453880(&Paint, &dword_4B60A4);
sub_464580(&Paint);
if ( MessageBoxA(0LL, "Continue?", "E=hv", 4u) == 7 )
{
memset(dword_4B6040, 0, sizeof(dword_4B6040));
check();
check();
InvalidateRect(hWnd, 0LL, 1);
dword_4B60A4 = 0;
}
sub_464C70(&Paint);
}
else
{
check();
check();
dword_4B60A4 = 0;
}
}
else
{
if ( n20 != 2 )
return DefWindowProcA(hWnd, n20, wParam, lParam);
TerminateThread(hThread, 0);
PostQuitMessage(0);
}
return 0LL;
}
//flag的检验函数
__int64 __fastcall check_flag(LPVOID lpThreadParameter)
{
if ( !sub_401DBF("flag.txt") )
return 0LL;
if ( get_check_flag() ) // 获取并检验flag
{
MessageBoxA(
hWnd,
"It seems you've uncovered some clues, but they're not enough to unlock the deepest secrets.",
"sandtea",
0x30u);
return 1LL;
}
else
{
MessageBoxA(hWnd, "You have found the final secret of 2048! - sandtea", "Congratulations", 0x40u);
return 0LL;
}
}
//获取并检验flag的函数
__int64 get_check_flag()
{
size_t length; // rax
char flag[136]; // [rsp+20h] [rbp-D0h] BYREF
unsigned __int64 block_num; // [rsp+A8h] [rbp-48h] BYREF
char key[32]; // [rsp+B0h] [rbp-40h] BYREF
void *Block; // [rsp+D0h] [rbp-20h]
FILE *FILE; // [rsp+D8h] [rbp-18h]
unsigned __int64 i; // [rsp+E0h] [rbp-10h]
unsigned int v8; // [rsp+ECh] [rbp-4h]
FILE = fopen("flag.txt", "r");
file_read(FILE, "%100s", flag);
fclose(FILE);
if ( strlen(flag) != 37 )
return 1LL;
strcpy(key, "2048master2048ma");
length = strlen(flag);
Block = encrypt(flag, length, key, &block_num);
if ( Block )
{
v8 = 0;
for ( i = 0LL; i < block_num; ++i )
{
if ( *(Block + i) != byte_495280[i] )
v8 = 1;
}
free(Block);
return v8;
}
else
{
sub_428D00("Encryption failed\n");
return 1LL;
}
}
//加密函数
__int64 __fastcall encrypt(__int64 flag, unsigned __int64 length, _QWORD *key, __int64 block_num)
{
__int64 v5; // rdx
_QWORD Key[3]; // [rsp+20h] [rbp-30h] BYREF
unsigned __int64 word_num; // [rsp+38h] [rbp-18h] BYREF
_WORD *block; // [rsp+40h] [rbp-10h]
void *mem; // [rsp+48h] [rbp-8h]
mem = new_mem(flag, length, &word_num); // 根据传入的flag申请了一块内存，word_num是申请的word个数
if ( !mem )
return 0LL;
v5 = key[1]; // 这是传入的密钥
Key[0] = *key;
Key[1] = v5;
modifiedXXTea(mem, word_num, Key); // xxtea加密
block = make_blocks(mem, word_num, block_num);// 对加密后的数据进行一些转换，以便后续和给定的数据进行校验
free(mem);
return block;
}
//申请内存的函数
_DWORD *__fastcall new_mem(__int64 flag, unsigned __int64 length, unsigned __int64 *word_num)
{
_DWORD *mem; // [rsp+28h] [rbp-18h]
unsigned __int64 Word_num; // [rsp+30h] [rbp-10h]
unsigned __int64 i; // [rsp+38h] [rbp-8h]
Word_num = (length + 3) >> 2; // 10
mem = calloc(Word_num, 4uLL); // 10*4字节的内存空间
if ( !mem )
return 0LL;
for ( i = 0LL; i < length; ++i )
mem[i >> 2] |= *(flag + i) << (8 * (i & 3));
*word_num = Word_num;
return mem;
}
//魔改xxtea函数
bool __fastcall modifiedXXTea(unsigned int *block, int word_num, __int64 key)
{
unsigned int *p1; // rax
unsigned int *last_one1; // rax
bool result; // al
unsigned int *v6; // rax
int v7; // [rsp+8h] [rbp-18h]
unsigned int v8; // [rsp+8h] [rbp-18h]
int round; // [rsp+Ch] [rbp-14h]
int v10; // [rsp+Ch] [rbp-14h]
unsigned int j; // [rsp+10h] [rbp-10h]
int i; // [rsp+10h] [rbp-10h]
unsigned int delta; // [rsp+14h] [rbp-Ch]
unsigned int delta1; // [rsp+14h] [rbp-Ch]
unsigned int last_one; // [rsp+18h] [rbp-8h]
unsigned int v16; // [rsp+18h] [rbp-8h]
unsigned int v17; // [rsp+18h] [rbp-8h]
unsigned int p2; // [rsp+1Ch] [rbp-4h]
unsigned int v19; // [rsp+1Ch] [rbp-4h]
int v20; // [rsp+38h] [rbp+18h]
if ( word_num <= 1 )
{
if ( word_num < -1 )
{
v20 = -word_num;
v10 = 52 / -word_num + 6;
delta1 = 0x3E9779B9 * v10;
v19 = *block;
do
{
v8 = (delta1 >> 2) & 3;
for ( i = v20 - 1; i; --i )
{
v16 = block[i - 1];
v6 = &block[i];
*v6 -= (((4 * v19) ^ (v16 >> 5)) + ((v19 >> 3) ^ (16 * v16))) ^ ((v19 ^ delta1)
+ (v16 ^ *(4LL * (v8 ^ i & 3) + key)));
v19 = *v6;
}
v17 = block[v20 - 1];
*block -= (((4 * v19) ^ (v17 >> 5)) + ((v19 >> 3) ^ (16 * v17))) ^ ((v19 ^ delta1) + (v17 ^ *(4LL * v8 + key)));
v19 = *block;
delta1 -= 0x3E9779B9;
result = --v10 != 0;
}
while ( v10 );
}
}
else
{
round = 52 / word_num + 6;
delta = 0;
last_one = block[word_num - 1];
do
{
delta += 0x3E9779B9;
v7 = (delta >> 2) & 3;
for ( j = 0; word_num - 1 > j; ++j )
{
p2 = block[j + 1];
p1 = &block[j];
*p1 += (((4 * p2) ^ (last_one >> 5)) + ((p2 >> 3) ^ (16 * last_one))) ^ ((p2 ^ delta)
+ (last_one ^ *(4LL * (v7 ^ j & 3) + key)));
last_one = *p1;
}
last_one1 = &block[word_num - 1];
*last_one1 += (((4 * *block) ^ (last_one >> 5)) + ((*block >> 3) ^ (16 * last_one))) ^ ((*block ^ delta)
+ (last_one ^ *(4LL * (v7 ^ j & 3) + key)));
last_one = *last_one1;
result = --round != 0;
}
while ( round );
}
return result;
}
//数据格式转换函数
_WORD *__fastcall make_blocks(__int64 mem, unsigned __int64 num_word, size_t *block_num)
{
_WORD *block; // [rsp+20h] [rbp-10h]
unsigned __int64 i; // [rsp+28h] [rbp-8h]
*block_num = 4 * num_word;
block = malloc(*block_num);
if ( !block )
return 0LL;
for ( i = 0LL; i < num_word; ++i )
{
block[2 * i] = *(4 * i + mem);
LOBYTE(block[2 * i + 1]) = BYTE2(*(4 * i + mem));
HIBYTE(block[2 * i + 1]) = HIBYTE(*(4 * i + mem));
}
return block;
}所以要解出flag，就需要逆向这个xxtea加密。把这个任务交给AI，可以得到解密脚本：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdint.h>
// 加密数据（make_blocks的输出）
uint8_t encrypted_data[40] = {
0x35, 0x79, 0x77, 0xCC, 0x1B, 0x13, 0x41, 0x34, 0xF9, 0xFF,
0x9F, 0x91, 0xFF, 0x5B, 0x94, 0x78, 0x86, 0x2A, 0xAF, 0xAE,
0xD7, 0x9E, 0x31, 0x4D, 0x7A, 0xC4, 0xA5, 0x51, 0xD1, 0xD9,
0x6E, 0x44, 0x18, 0x52, 0x86, 0x1B, 0x42, 0x8A, 0xC9, 0x63
};
// 密钥
char key[17] = "2048master2048ma";
// 逆make_blocks：将_WORD数组转换回DWORD数组
uint32_t* unmake_blocks(uint8_t* blocks, size_t block_bytes, size_t* num_dwords) {
*num_dwords = block_bytes / 4;
uint32_t* dwords = (uint32_t*)malloc(*num_dwords * 4);
for (size_t i = 0; i < *num_dwords; i++) {
// 将两个WORD合并为一个DWORD
uint16_t low_word = *(uint16_t*)&blocks[4 * i];
uint16_t high_word = *(uint16_t*)&blocks[4 * i + 2];
dwords[i] = (high_word << 16) | low_word;
}
return dwords;
}
// 逆modifiedXXTea解密
void decrypt_tea(uint32_t* data, int num_dwords, uint32_t* tea_key) {
if (num_dwords <= 1) return;
int rounds = 52 / num_dwords + 6;
uint32_t delta = 0x3E9779B9 * rounds; // 1050114489
uint32_t sum = delta;
uint32_t y = data[0];
for (int i = 0; i < rounds; i++) {
uint32_t e = (sum >> 2) & 3;
for (int j = num_dwords - 1; j > 0; j--) {
uint32_t z = data[j - 1];
data[j] -= (((z >> 5) ^ (y << 2)) + ((y >> 3) ^ (z << 4))) ^ ((sum ^ y) + (tea_key[(j ^ e) & 3] ^ z));
y = data[j];
}
uint32_t z = data[num_dwords - 1];
data[0] -= (((z >> 5) ^ (y << 2)) + ((y >> 3) ^ (z << 4))) ^ ((sum ^ y) + (tea_key[e] ^ z));
y = data[0];
sum -= 0x3E9779B9;
}
}
// 从DWORD数组提取字符串
char* extract_string(uint32_t* dwords, size_t num_dwords, size_t original_len) {
char* str =(char*) malloc(original_len + 1);
memset(str, 0, original_len + 1);
for (size_t i = 0; i < original_len; i++) {
uint32_t dword = dwords[i >> 2];
str[i] = (dword >> (8 * (i & 3))) & 0xFF;
}
return str;
}
int main() {
// 步骤1: 逆make_blocks
size_t num_dwords;
uint32_t* tea_encrypted = unmake_blocks(encrypted_data, 40, &num_dwords);
printf("After unmake_blocks (%zu DWORDs):\n", num_dwords);
for (size_t i = 0; i < num_dwords; i++) {
printf("0x%08X ", tea_encrypted[i]);
}
printf("\n\n");
// 步骤2: 准备TEA密钥（将字符串转换为4个32位整数）
uint32_t tea_key[4];
memcpy(tea_key, key, 16);
printf("TEA Key:\n");
for (int i = 0; i < 4; i++) {
printf("0x%08X ", tea_key[i]);
}
printf("\n\n");
// 步骤3: 逆modifiedXXTea解密
decrypt_tea(tea_encrypted, num_dwords, tea_key);
printf("After TEA decryption:\n");
for (size_t i = 0; i < num_dwords; i++) {
printf("0x%08X ", tea_encrypted[i]);
}
printf("\n\n");
// 步骤4: 提取flag字符串（原始长度37字节）
char* flag = extract_string(tea_encrypted, num_dwords, 37);
printf("Decrypted flag: %s\n", flag);
// 清理
free(tea_encrypted);
free(flag);
return 0;
}
Moectf2025ReverseWriteUp
https://sydzi.github.io/2025/10/12/Moectf2025ReverseWriteUp/
